Aluminum hanger Semi Automatic Busbar Fabrication Equipment

Detailed Product Description
Name: Compact Busbar Manufacturing Machine Hanger Material: Aluminum Hanger
Max. Busbar Height: 330mm Max. Busbar Length: 6000mm
Working Efficiency: Around 3000mm/4min Length Of Reversal Part: 4500mm
Manual Operation Station Length: 1500mm Power: 380~415VAC 50~60Hz 5kW
Dimension: L18000mm*W800mm*H1900mm
High Light:

1500mm Busbar Fabrication Equipment

,

380V Busbar Fabrication Equipment

,

380V Busbar Manufacture Equipment

Aluminum Hanger Semi Automatic Busbar Fabrication Equipment





Function introduction

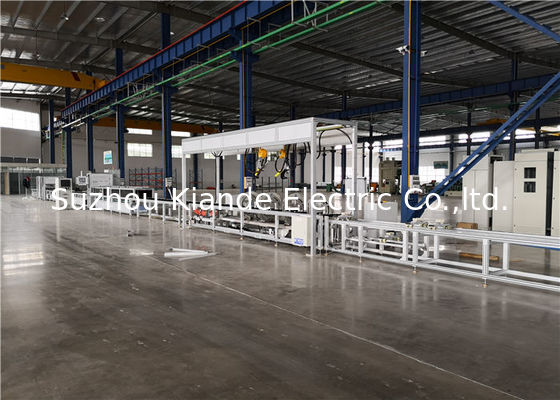

Semi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.



Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side’s riveting.



Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.



Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.



Equipment data on semi-automatic busbar assembly line



No. Parameters
Model KD-ZDX/H-4-6(4.5)

Max. Busbar Height

330mm (Single Layer)

Max. Busbar Length

6000mm

Working Efficiency

Around 3000mm/4min
Riveting Machine Not included
Rotator Nos 4 sets (standard)

Length of Reversal Part

4500mm

Manual Lifting Fixture Nos

3 pieces

Manual Operation Station Length

1500mm
Hanger Material Aluminum hanger
Riveting Type Manual riveting
Power 380~415VAC 50~60Hz 5kW
Equipment Dimension L18000mm*W800mm*H1900mm



FAQ



Q1: Are you a factory or trading company?



A1: Our factory located in Zhengjiang city which is specialized in busbar assembly equipment and switchgear assembly equipment such as busbar assembly system, busbar testing machine, busbar wrapping machine and busbar accessores. Our sales office located in Suzhou city which traffic is more convinent.



Q2: Where is your factory location? How can I visit there?



A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Changzhou Bei Station(1 hour), then we will pick u up.



Q3: How does your factory do regarding quality control?



A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.



Q4: What’s the guarantee if we purchase from you?



A4: All the equipment ordered from us will provide one year guarantee from the delivery date .If there is any wearing part be broken within the warranty and isn’t caused by improperly operation then we would offer the new parts for free.



Q5: How about the after service?



A5: There’s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the visa, round air tickets cost and arrange the hotel accommodation for our engineer.
