|Name:||Busbar Inspection Machine||Power:||380~415VAC 50~60Hz 5kW|
|Busbar Length:||1200mm~6000mm||Busbar Height:||100mm~650mm|
|Grounding Test:||0~25A||Insulation Test:||1~1000V|
|High Voltage Withstanding Test:||0~5000V||Equipment Dimension:||L12000mm*W1200mm*H1900mm|
|Servo Nos:||2 Axis ( Z Axis / X Axis)|
Automatic Busbar Inspection Line,
650mm Busbar Inspection Line,
5kW Busbar Inspection Machine
5kW Automatic Busbar Inspection Line For Batch Inspecting
1) High voltage withstanding and insulation testing.
2) Testing result can be keep in computer for record.
testing report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.

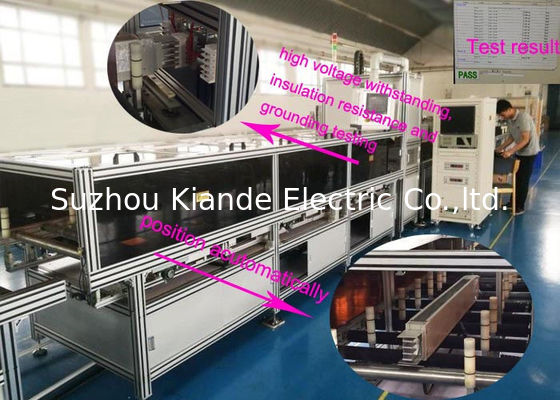

Automatic Busbar Inspection Line is composed of three parts, feeding positioning station, inspection station and discharge station. When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line. Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated. This report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements. Automatic inspection machine is mainly used for batch inspecting on the straight busbar. Elbow busbar type shall be tested on manual inspection machine.
Equipment data on automatic busbar inspection line
|Busbar Type||Straight length type|
|Position Type||Unilateral / Middle|
2 min/piece(testing time is adjustable.)
|Servo Nos||2 axis( Z axis/X axis)|
Phase error judgment( optional)
Bar code printing/ Report printing( optional)
High Voltage Withstanding Test
|380~415VAC 50~60Hz 5kW|
