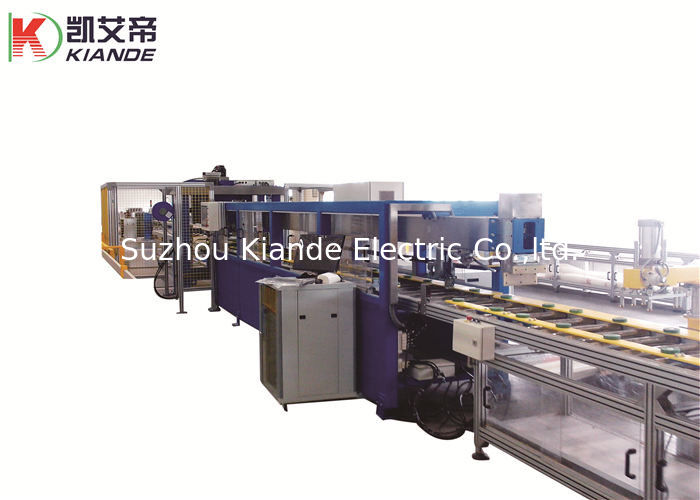

Automatic busbar assembly line
The automatic busbar assembly line is specially designed for busbar assembly and riveting procedures.
Main working procedures:
1. pre-assembly: bending the copper or aluminum bus bar and then installing into the profile;
2. online assembly: automatic clamping, riveting and moving;

Fuction

the automatic assembly machine will help to reduce manpower and improve the product quality and working efficiency.

Function introduction

Automatic assembly line is customized according to clients’ busbar type. It can achieve unmanned operation no matter the busbar is fixed by rivet or bolt. Currently the busbar type is mainly divided into two types: two-piece type and four-piece type.

By automatic assembly and fixing, the automatic assembly machine will help to reduce manpower and improve the product quality and working efficiency. The working principle is to recognize the busbar type and adjust all the parameters in the machine automatically by scanning the bar code. By module interconnection among PLC, network, touch screen and IPC etc., automatic assembly machine can also achieve information communication with ERP, automatic inspection machine and other related machines.

Besides that, automatic assembly machine has self-checking functions by self diagnosing each input and output signal to avoid failures. Furthermore, data statistics for machine’s OEE (comprehensive utilization rate) is helpful for future data analysis.

Equipment data on automatic busbar assembly line
