Product Details:
|
| Production Scope: | Product Line | Name: | Manual Busway Assembly Line |
|---|---|---|---|
| Working Efficiency: | Around 3000mm/6min | Lifting Fixture: | 6 Pieces/8 Pieces |
| Power: | 380~415VAC 50~60Hz 1kW | Equipment Dimension: | L18000(13500)mm*W800mm*H800mm |
| Max. Busbar Length: | 6000mm | Max. Busbar Height: | 330mm (Single Layer) |
| High Light: | Busduct Assembly Line,1kW Busbar Assembly Line,Single Layer Busway Assembly Line |
||

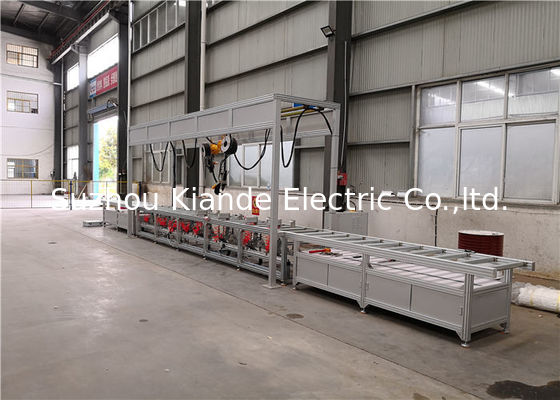

Single Layer 330mm Height Manual Busduct Assembly Line
We are the company specialized in busbar machine.Busbar machine means busbar production machine or busbar processing machine including mylar sleeve forming machine, busbar assembly machine, busbar riveting machine, busbar testing & inspection machine, busbar packing machine and busbar conveying machine.
Function introduction
Manual Busduct Assembly Line is composed of three parts, pre-assembly station, riveting station and accessory assembly station. It is applied for two types of busbar: two piece type and four piece type. Main function of this machine is to fix the busbar conductor in convenience of riveting. All operation such as rotating, riveting and etc. will be done manually.
Equipment data on manual busbar assembly line
| No. | Parameters |
| Model | KD-SDX/2(4) -6(4.5) |
|
Max. Busbar Height |
330mm (single layer) |
|
Max. Busbar Length |
6000mm |
|
Working Efficiency |
Around 3000mm/6min |
| Lifting Fixture | 6 pieces/8 pieces |
| Frame Material | Aluminum/iron (optional) |
| Hanger Material | Aluminum hanger |
| Riveting Type | Manual riveting |
| Power | 380~415VAC 50~60Hz 1kW |
| Equipment Dimension | L18000(13500)mm*W800mm*H800mm |
