Product Details:
|
| Model: | KD-JCX/M-6 | Busbar Height: | 100mm~650mm |
|---|---|---|---|
| Busbar Length: | 500mm~3000mm | Power: | 380~415VAC 50~60Hz 3kW |
| Grounding Test: | 0~25A | Insulation Test: | 1~1000V |
| High Voltage Withstanding Test: | 0~5000V | Servo Nos: | L6200mm*W800mm*H800mm |
| High Light: | Manual Busbar Inspection Line,Irregular Busbar Inspection Line,Irregular Busduct Inspection Machine |
||

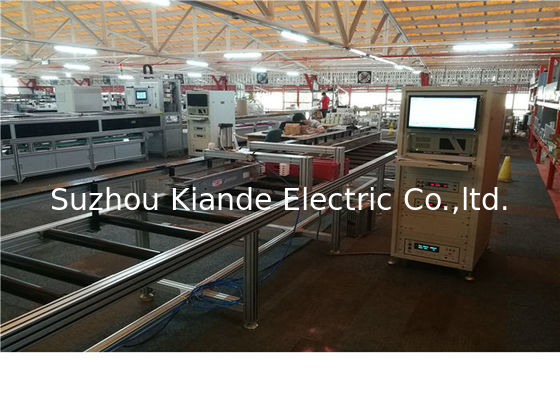

Unilateral Manual Irregular Busduct Inspection Machine
Function introduction
Manual Busbar Inspection Line is mainly used for inspecting short straight busbar, elbow busbar, terminal busbar and etc.. It’s composed of two parts: fixture positioning and main inspection instruments. Fixture positioning part is operated manually while inspection instruments will test the busbar and generate the report automatically.
Equipment data on Manual busbar inspection line
| No. | Parameters |
| Model | KD-JCX/M-6 |
| Busbar Height | 100mm~650mm |
| Busbar Length | 500mm~3000mm |
| Suitable Busbar Type | Irregular busbar |
| Position Type | Unilateral |
|
Printing System |
Bar code printing/ Report printing( optional) |
|
High Voltage Withstanding Test |
0~5000V |
| Insulation Test | 1~1000V |
| Grounding Test | 0~25A |
|
Power |
380~415VAC 50~60Hz 3kW |
|
Equipment Dimension |
L6200mm*W800mm*H800mm |
Feature
Customized
testing report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.
Fuction
HV withstanding test, insulation resistance test and grounding test
