Automatic Busduct Packing Machine For Wrap Film Over The Busbar

Detailed Product Description
Name: Busway Packaging Machine Model: KD-BZJ/D-6
Language: Chinese/English Busbar Height: 100mm~650mm
Busbar Length: 1500mm~6000mm Busbar Type: Straight Length Busbar
Film Width: 100mm~230mm Power: 380~415VAC 50~60Hz 4kW
High Light:

650mm Busduct Packing Machine

,

6000mm Busduct Packing Machine

,

4kW Busduct Packing Machine

Automatic Busduct Packing Machine For Wrap Film Over The Busbar





Once the packaging line senses the materials, it will start automatic wrapping silently and cut the wrapping material when wrapping is finished. The inspection trolley can be equipped to achieve the fully automatic packaging.



Equipment data on automatic packing machine



No. Parameters
Model KD-BZJ/D-6
Busbar Height 100mm~650mm
Busbar Length 1500mm~6000mm
Busbar Type Straight length busbar
Film Cutting Automatic cutting
Mediate Mode Automatic mediate
Control Mode PLC control
Film Width 100mm~230mm
Language Chinese/English
Power 380~415VAC 50~60Hz 4kW

Equipment Dimension

L6000mm*W2000mm*H800mm



Function introduction



Automatic Busduct Packing Machine is to wrap film over the busbar to keep busbar away from the dust and moisture during transportation. This kind of packing machine can achieve the function of automatic feeding, automatic packing, automatic wrapping and automatic cutting. It can be matched with automatic stacking system to realize full automatic packing and storage. Machine is mainly designed for straight length busbar. For irregular busbar, please kindly adopt Kiande’s other machines or wrap it manually.

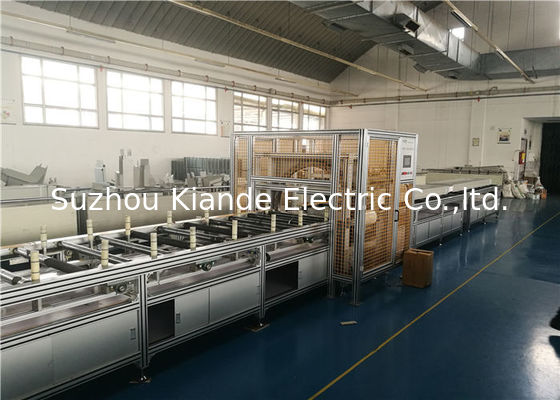

Automatic Busduct Packing Machine For Wrap Film Over The Busbar 0
