| Model: | KD-FQJ-1300 | Max. Width Of Raw Materials: | 1200mm |
|---|---|---|---|
| Max. Diameter Of Raw Materials: | 700mm | Slitting Width: | 50mm-1200mm |
| Scroll Diameter: | 3 Inches | Slitting Speed: | 0-300m/min |
| Air Source: | 0.6MPa | Equipment Dimension: | L1600mm*W1800mm*H1500mm |
| High Light: | 0.6MPa Polyester Film Slitting Machine,1200mm Polyester Film Slitting Machine,300m/min Polyester Film Slitting Machine |
||

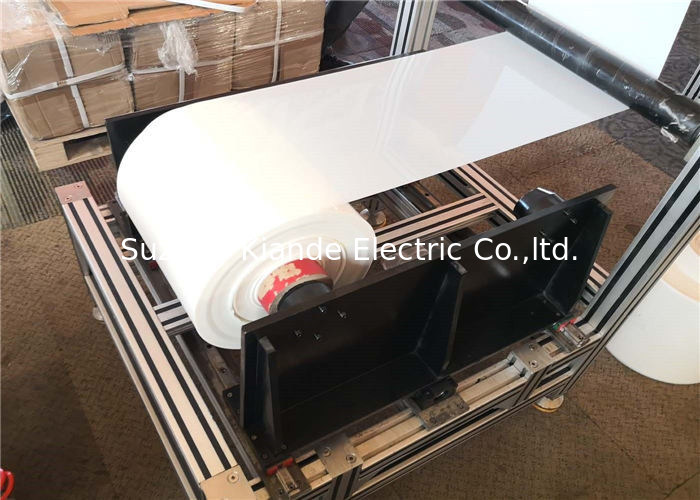

Automatic Feed In Polyester Film Slitting Machine For Cutting
Advantage
Busbar polyester film cutting machine is used to cut the Mylar film as the required width and length.
Automatic feed-in, cutting and feed-out increase the working efficiency and accuracy.
Function introduction
Polyester Film Slitting Machine is mainly used for cutting busbar polyester film. It’s composed of three parts: feeding, cutting and discharging. Length and width can be set according to requirement.
Equipment data on mylar film slitting machine
| No. | Parameters |
| Model | KD-FQJ-1300 |
|
Max. Width of Raw Materials |
1200mm |
|
Max. Diameter of Raw Materials |
700mm |
|
Slitting Width |
50mm-1200mm |
| Scroll Diameter | 3 inches |
|
Slitting Speed |
0-300m/min |
|
Length Control |
Meter counter |
| Power | 220V~415VAC 50~60Hz 3kW |
| Air Source | 0.6MPa |
| Equipment Dimension | L1600mm*W1800mm*H1500mm |
