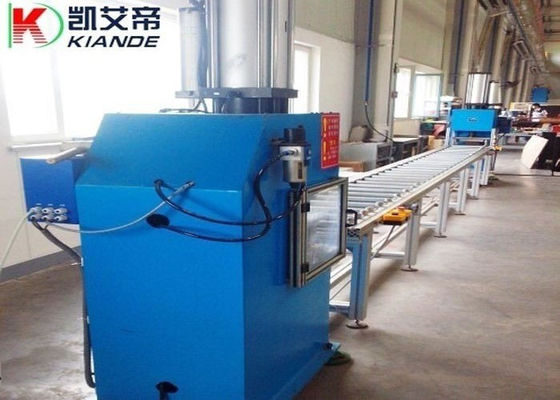

One Time Molding 3mm 10mm CNC Busbar Punching Machine

One Time Molding 3mm 10mm CNC Busbar Punching Machine
One Time Molding 3mm 10mm CNC Busbar Punching Machine

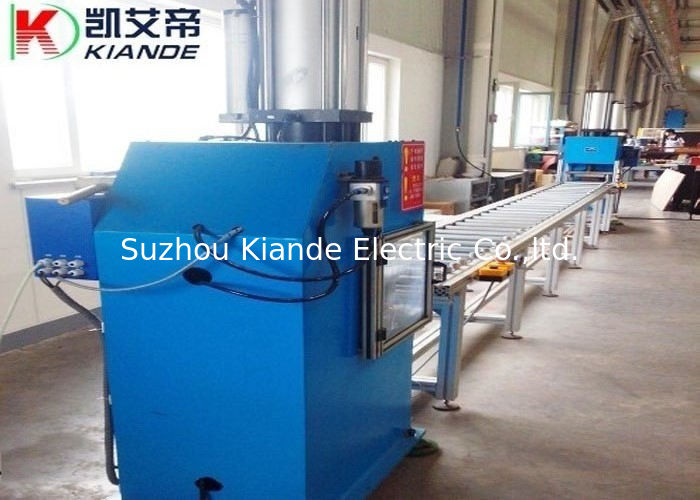

Large Image :  One Time Molding 3mm 10mm CNC Busbar Punching Machine

Product Details:
Model Number: KD-YYJ-40(50)T
Detailed Product Description
Name: Compact Busduct Manufacturing Machine Bending Power Type: Hydraulic And Pneumatic Hybrid
Bending Thickness: 3-10mm Die: Fast Die Change
Workplace Size: L450mm*W340mm Air Source: 0.6MPa
Pressure: 40T Or 50T, Max. 80T Equipment Dimension: L680mm* W580mm* H2600mm
Power: 220~230VAC 50~60Hz 80W Model: KD-YYJ-40(50)T
High Light:

3mm Busbar Punching Machine

,

8mm Busbar Punching Machine

,

CNC Busbar Punching Machine

One Time Molding 3mm 10mm CNC Busbar Punching Machine



Principle characteristics


1. Using compressed air as the power source, it is highly efficient and easy to operate, with simple structure and minimal maintenance.
2. There is no noise generated by the hydraulic system during standby, which can save power consumption and reduce production costs.
3. The height, speed, stroke, pressure and stamping time can be adjusted arbitrarily according to different products or molds.
4. Equipped with anti-rotation guide rods and guide plates, with high precision, which can adapt to high-speed precision blanking.
5. Two-hand control or foot pedaling can be selected. Ensure the personal safety of operators.
6. Using a microcomputer control system, the mode can be manual, semi-automatic and fully automatic. Heating molds, temperature control and pressure sensors can be added. The structure is simple, and pneumatic technology is adopted to realize that one air compressor can supply multiple pneumatic punching machines at the same time, which is more energy-efficient than electric punching machines. Reduce power consumption.



The operation is simple, the safety type is high, the foot switch is used to control the solenoid valve, the structure is simple, the failure rate is low, and the production efficiency is improved.



Equipment data on digital copper bar punching machine



No. Parameters
Equipment Code KD-YYJ-40(50)T
Bending Type Pneumatic and hydraulic
Pressure 40T/50T Maximum 80T
Mold Easy To Change
Table Size 450mm*340mm
Control Type Digital Type
Pneumatic Supply 0.6MPa
Power 220~230VAC 80W
Size Of Equipment L0.68m*W0.58m*H2.6m



Function introduction



Digital bus bar punching machine is used to punch the two ends of busbar in one time to guarantee parallelism between busbar profile and conductor. This parallelism ensures the reliable connection between conductor and joint which can control joint temperature rising. Key point is that machine can adjust the rebound coefficient according to conductor’s material and width. Rebound coefficient varies by bending or different conductor width and this kind of adjustment can guarantee the parallelism.





One Time Molding 3mm 10mm CNC Busbar Punching Machine 0
