|Name:||Self Piercing Rivet Gun||Model:||KD-MJQ-2|
|Max. Pressure:||25MPa||Gun Head Stroke:||50mm|
|Aluminum Thickness:||3mm+3mm||Iron Thickness:||1.5mm+1.5mm|
|Oil Pipe Length:||10000mm||Oil Tank Capacity:||50L|
Self Piercing Busbar Riveting Machine,
50mm Busbar Riveting Machine,
4.5kW Busbar Riveting Machine

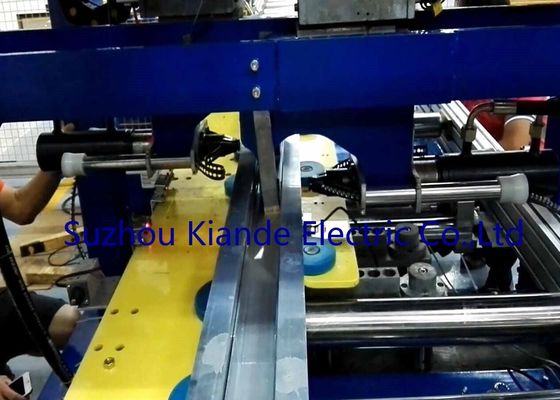

Self Piercing Bus bar Riveting Machine For Busway Profile Production
Equipment data on self-piercing riveting machine
|Oil Pipe Length||10000mm|
|Oil Tank Capacity||50L|
|Gun Head Stroke||50mm|
|Power||380~415VAC 50~60Hz 4.5kW|

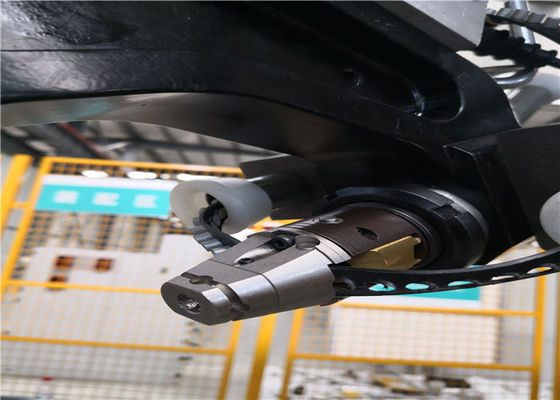

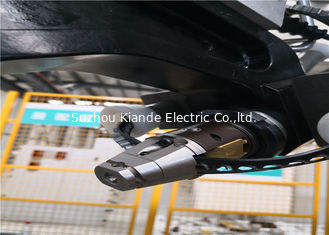

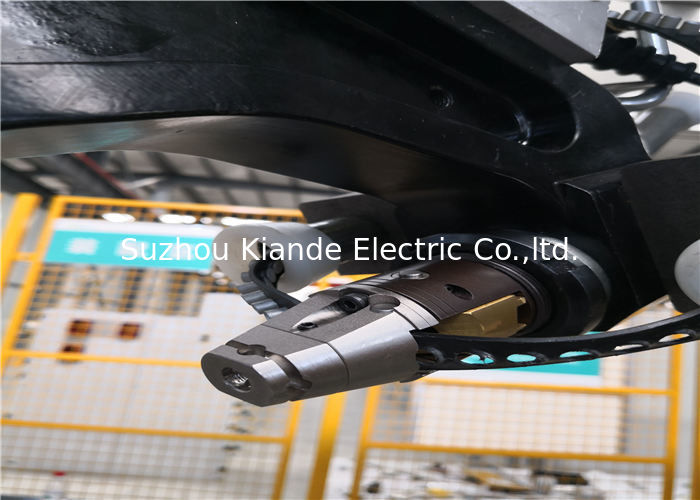

Self-piercing riveting machine, also called riveting gun, is applied for busbar assembly. It can be customized according to different busbar housing. Before riveting, operator does not need to drill the hole. Machine can realize self-piercing riveting by its pressure and rivet structure. Working principal is as below.
1, The supercharger drives the split cylinder as the riveting power source, which has the characteristics of low noise, low energy consumption and no pollution.
2, The servo system controls the rivet clamp and the left and right movement, to realize the two sides are simultaneously riveted by the forward movement and the stop action of the roller.
3, The discharge line has a lateral removal function.
4, The busbar casing is no more than 3 meter length.
5, Feeding line has servo clamping mechanism, the most front-end is 3m roller table
