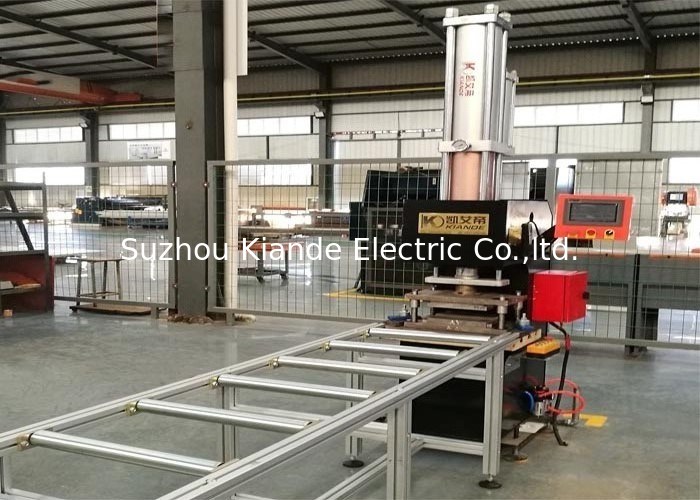

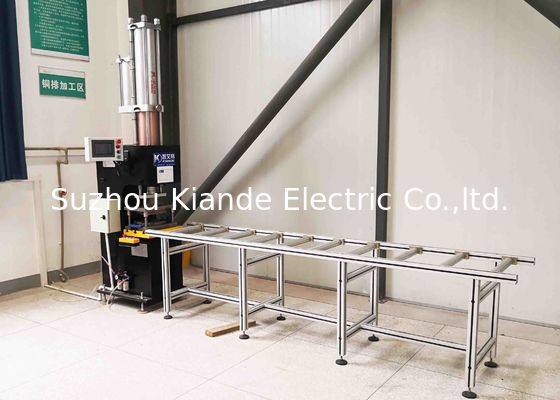

Copper Bar Aluminum Bar Busbar Hydraulic Punching Machine

Copper Bar Aluminum Bar Busbar Hydraulic Punching Machine
Copper Bar Aluminum Bar Busbar Hydraulic Punching Machine Copper Bar Aluminum Bar Busbar Hydraulic Punching Machine Copper Bar Aluminum Bar Busbar Hydraulic Punching Machine

Large Image :  Copper Bar Aluminum Bar Busbar Hydraulic Punching Machine

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-YYJ-40(50)T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customized
Packaging Details: plywood case
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 10set/ month
Detailed Product Description
Name: Hydraulic Busbar Bending Machine Die: Fast Die Change
Bending Thickness: 3-10mm Bending Power Type: Hydraulic And Pneumatic Hybrid
Pressure: 40T Or 50T, Max. 80T Workplace Size: L450mm*W340mm
Air Source: 0.6MPa Equipment Dimension: L680mm* W580mm* H2600mm
Power: 220~230VAC 50~60Hz 80W
High Light:

Busbar Hydraulic Punching Machine

,

9mm Hydraulic Punching Machine

,

10mm Hydraulic Punching Machine

Copper Bar Aluminum Bar Busbar Hydraulic Punching Machine



A gas liquid booster is a device that uses a gas-liquid booster cylinder as an output device. The types and functions of the gas-liquid booster are very wide, and it can replace traditional mechanical stamping and hydraulic presses. Gas-liquid boosters are widely used: stamping, bending, cutting, punching, stamping, riveting, sheet metal shaping, tight assembly, extrusion molding, profile butt welding, material testing, etc.



Function introduction



Digital bus bar Hydraulic Punching Machine is used to punch the two ends of busbar in one time to guarantee parallelism between busbar profile and conductor. This parallelism ensures the reliable connection between conductor and joint which can control joint temperature rising. Key point is that machine can adjust the rebound coefficient according to conductor’s material and width. Rebound coefficient varies by bending or different conductor width and this kind of adjustment can guarantee the parallelism.



Equipment data on digital copper bar punching machine



No. Parameters
Model KD-YYJ-40(50)T
Bending Power Type Hydraulic and pneumatic hybrid
Pressure

40T or 50T, Max. 80T

Die Fast die change
Workplace Size L450mm*W340mm
Control Mode Digital control
Air Source 0.6MPa
Power 220~230VAC 50~60Hz 80W
Equipment Dimension L680mm* W580mm* H2600mm
