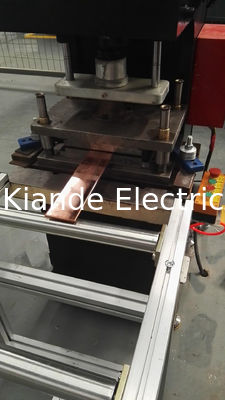

gas liquid booster Hydraulic Punching Machine For Busbar Bending

gas liquid booster Hydraulic Punching Machine For Busbar Bending
gas liquid booster Hydraulic Punching Machine For Busbar Bending gas liquid booster Hydraulic Punching Machine For Busbar Bending gas liquid booster Hydraulic Punching Machine For Busbar Bending gas liquid booster Hydraulic Punching Machine For Busbar Bending

Large Image :  gas liquid booster Hydraulic Punching Machine For Busbar Bending

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-YYJ-40(50)T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customized
Packaging Details: plywood case
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 10set/ month
Detailed Product Description
Name: Busbar Fabrication Equipment Die: Fast Die Change
Feature: High Precision Bending Thickness: 3-10mm
Bending Power Type: Hydraulic And Pneumatic Hybrid Pressure: 40T Or 50T, Max. 80T
Workplace Size: L450mm*W340mm Air Source: 0.6MPa
Equipment Dimension: L680mm* W580mm* H2600mm Power: 220~230VAC 50~60Hz 80W
Other Name: Bus Bar Bending Machine Other Name 2: Bus Bar Punching Machine
High Light:

50T Hydraulic Punching Machine

,

80T Hydraulic Punching Machine

,

ISO9001 Copper Bar Bending Machine

Gas Liquid Booster Hydraulic Punching Machine For Busbar Bending





A gas liquid booster is a device that uses a gas-liquid booster cylinder as an output device. The types and functions of the gas-liquid booster are very wide, and it can replace traditional mechanical stamping and hydraulic presses. Gas-liquid boosters are widely used: stamping, bending, cutting, punching, stamping, riveting, sheet metal shaping, tight assembly, extrusion molding, profile butt welding, material testing, etc.



Application


The gas-liquid booster is suitable for electronics, instruments, meters, cameras, jewelry, hardware and clothing, shoes and hats industries; it can cut, punch, blank, shape, bend, riveting thin plates, strips, and coils. And other processes; suitable for processing non-ferrous metals, plastic parts, etc.



Equipment data on digital copper bar punching machine



No. Parameters
Model KD-YYJ-40(50)T
Bending Power Type Hydraulic and pneumatic hybrid
Pressure

40T or 50T, Max. 80T

Die Fast die change
Workplace Size L450mm*W340mm
Control Mode Digital control
Air Source 0.6MPa
Power 220~230VAC 50~60Hz 80W
Equipment Dimension L680mm* W580mm* H2600mm





gas liquid booster Hydraulic Punching Machine For Busbar Bending 0
