| Name: | Busbar Production Machine | Model: | KD-CXJ/D(E)-250 |
|---|---|---|---|
| Efficiency: | 0-300m/min | Power: | 380~415VAC 50~60Hz 6kW |
| Control Mode: | Manual | Mylar Film Thickness: | 0.10mm~0.35mm |
| Mylar Film Width: | 30mm~250mm, Custom | Equipment Dimension: | L6000mm*W1500mm*H800mm |
| High Light: | Manual Busbar Mylar Forming Machine,Economic Busbar Mylar Forming Machine,Compact Busbar Mylar Forming Machine |
||

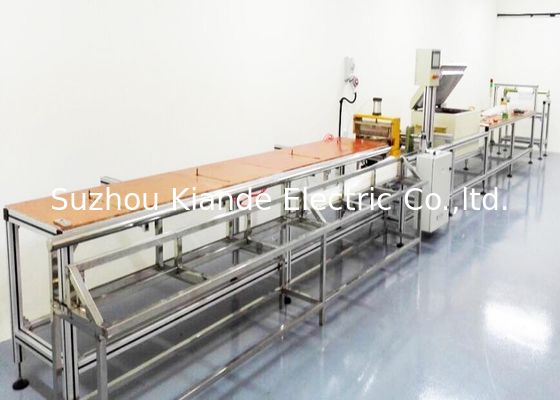

Economic Type Compact Manual Busbar Mylar Forming Machine
Features
1. Mylar film forming machine can realize unmanned operation.
2. Mylar film forming machine is to form the polyester film used in compact busbar by heating workmanship.
3. The working procedure includes feeding, pre-forming, heating, forming, cutting, discharging and etc.
4. Operator only needs to input the required data on the touch screen such as conductor width, heating temperature, cutting length and formed quantity and etc.
Equipment data on mylar forming machine
| No. | Parameters |
| Model | KD-CXJ/D(E)-250 |
| Mylar Film Thickness | 0.10mm~0.35mm |
| Mylar Film Width | 30mm~250mm (other size can be customized) |
| Double Layer Forming | Achieved |
| Mylar Film Thickness Adjustment | Manual (economic type) |
| Temperature Control | Automatic constant temperature |
| Power | 380~415VAC 50~60Hz 6kW |
| Equipment Dimension | L6000mm*W1500mm*H800mm |
