| Name: | Busbar Machine | Riveting: | Manual Riveting |
|---|---|---|---|
| Max. Busbar Height: | 330mm | Max. Busbar Length: | 6000mm |
| Working Efficiency: | Around 3000mm/4min | Length Of Reversal Part: | 4500mm |
| Manual Operation Station Length: | 1500mm | Power: | 380~415VAC 50~60Hz 5kW |
| Suit For: | Low Voltage Busway | Other Name: | Busway Horizontal Assembly Machine |
| Other Name 2: | Plug-In Busway Machine | Other Name 3: | Low Voltage Busway Assembly Machine |
| High Light: | 330mm Busbar Machine,6000mm Low Voltage Busway Machine,6000mm Low Voltage Busbar Machine |
||

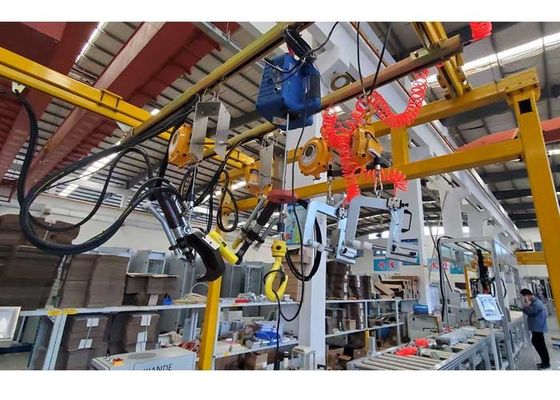

Busbar Machine for Low Voltage Plug-In Busway Horizontal Assembly
Comparison with manual assembly machine, this kind of assembly line (called Second Generation Semi-automatic Busbar Assembly line) is updated to solve the 180°reversal problems on heavy and long busbar.It is designed with 2 rotators for max 4m busbar production.
Function introduction
Semi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.

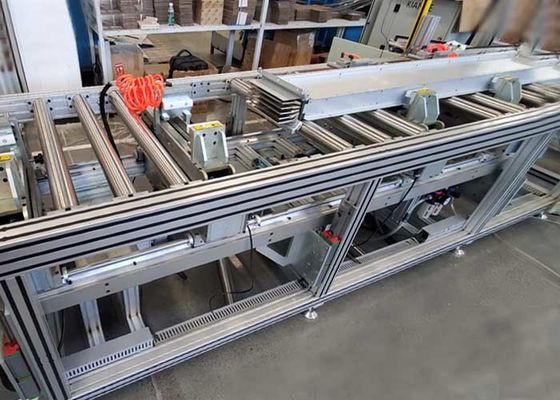

Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.

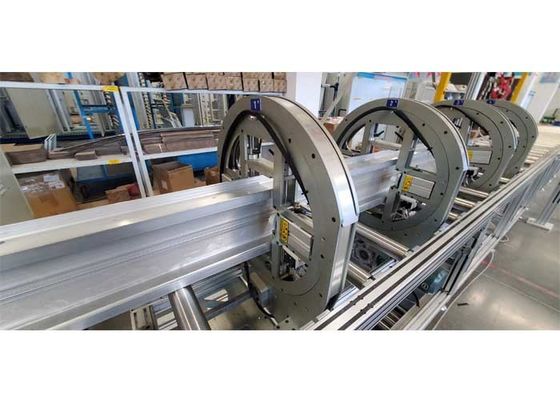

Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side’s riveting.
Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.
Equipment data on semi automatic busbar assembly line
| No. | Parameters |
| Model | KD-ZDX/H-4-6(4.5) |
|
Max. Busbar Height |
330mm (Single Layer) |
|
Max. Busbar Length |
6000mm |
|
Working Efficiency |
Around 3000mm/4min |
| Riveting Machine | Not included |
| Rotator Nos | 4 sets (standard) |
|
Length of Reversal Part |
4500mm |
|
Manual Lifting Fixture Nos |
3 pieces |
|
Manual Operation Station Length |
1500mm |
| Hanger Material | Aluminum hanger |
| Riveting Type | Manual riveting |
| Power | 380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L18000mm*W800mm*H1900mm |
