| Name: | Polyester Film Forming Machine | Model: | KD-CXJ/D(E)-260 |
|---|---|---|---|
| Control Mode: | Digital Control | Mylar Film Thickness: | 0.10mm~0.35mm |
| Mylar Film Width: | 30mm~260mm | Efficiency: | 7-8meter Per Mins |
| Power: | 380~415VAC 50~60Hz 6kW | Equipment Dimension: | L115000mm*W1500mm*H800mm |
| High Light: | 0.10mm Polyester Film Forming Machine,0.35mm Film Forming Machine,0.10mm Mylar forming machine |
||

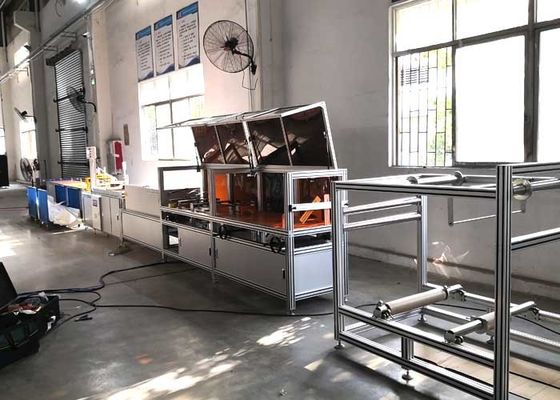

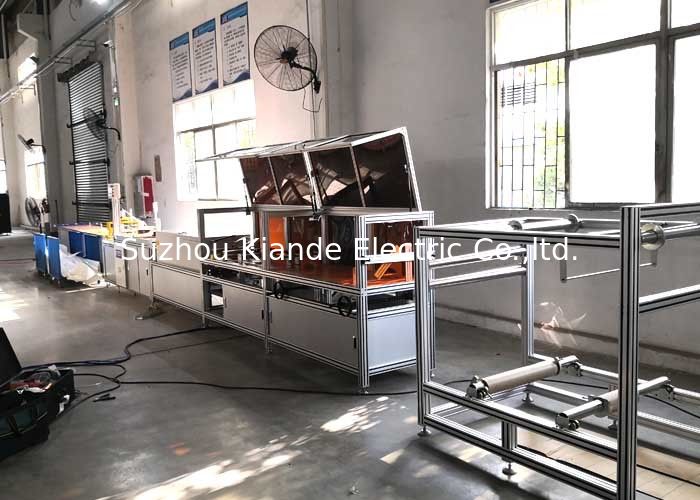

Mylar forming machine for insulation film thermoforming and cutting
Advantages
1. The rounded corners are particularly smooth without sharp corners
2. Save labor, single person can control multiple devices.
3. Cut to length according to the length of the bus bar, saving materials to the greatest extent
Function

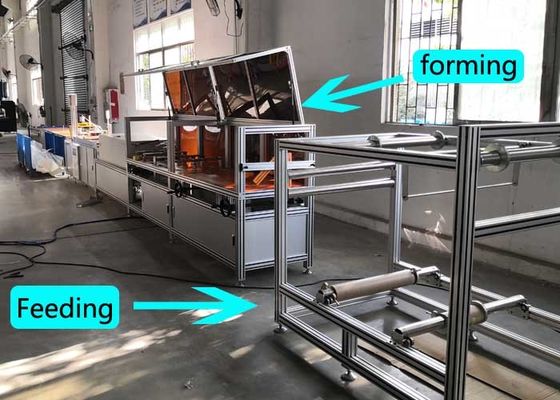

This machine includes the main function that feeding,pre-forming,constant temperature,length set,qty set,automatic cut,feeding-out and etc.Digital equipment can realize two channels forming.One person can operate multiple machines with high efficiency and quality.
Equipment data on mylar forming machine
| No. | Parameters | |
| Model | KD-CXJ/D(E)-250 | |
| Mylar Film Thickness | 0.10mm~0.35mm | |
|
Mylar Film Width |
30mm~250mm (other size can be customized.) |
|
|
Double Layer Forming |
Achieved | |
|
Mylar Film Thickness Adjustment |
Digital (advanced type) |
|
| Control Mode | Digital control | |
| Temperature Control | Automatic constant temperature | |
| Power | 380~415VAC 50~60Hz 6kW | |
| Equipment Dimension | L113000mm*W1500mm*H800mm | |
