Product Details:
Payment & Shipping Terms:
|
| Name: | Automtic Riveting Machine | Riveting: | Automaic Riveting |
|---|---|---|---|
| Max. Busbar Height: | 330mm | Max. Busbar Length: | 6000mm |
| Working Efficiency: | Around 3000mm/4min | Length Of Reversal Part: | 4500mm |
| Manual Operation Station Length: | 1500mm | Power: | 380~415VAC 50~60Hz 5kW |
| Suit For: | Low Voltage Busway | Other Name: | Busway Horizontal Assembly Machine |
| Other Name 2: | Plug-In Busway Machine | Other Name 3: | Low Voltage Busway Assembly Machine |
| High Light: | Kiande Automatic Riveting Machine,330mm automatic riveter,6000mm Automatic Riveting Machine |
||

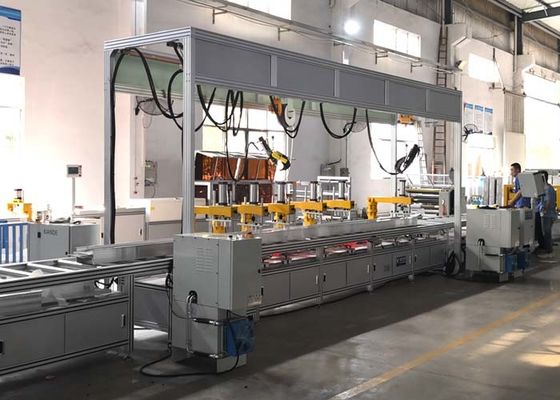

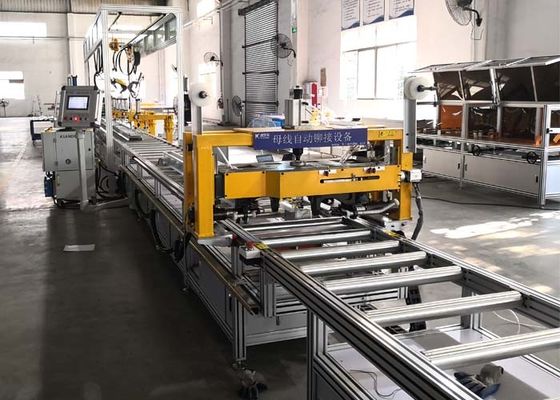

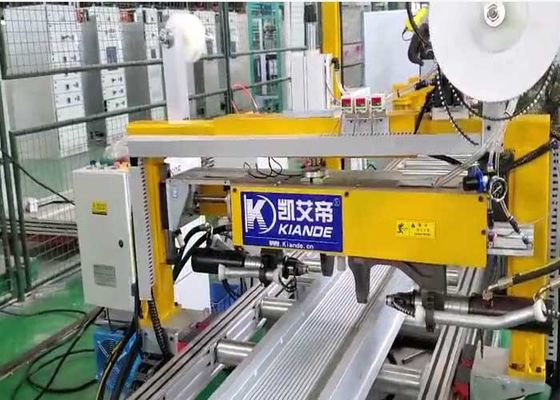

Automtic riveting machine for 2 piece type compact busbar housing assembly
Function introduction
This Automtic riveting machine for 2 piece type compact busbar housing assembly. with this machine, 2 pieces type busbar housing can be riveting automatically.
Advange:
Saving labors and make sure the riveting po
Equipment data on semi automatic busbar assembly line
| No. | Parameters |
| Model | KD-ZDX/H-4-6(4.5) |
|
Max. Busbar Height |
330mm (Single Layer) |
|
Max. Busbar Length |
6000mm |
|
Working Efficiency |
Around 3000mm/4min |
| Riveting Machine | included |
|
Length of Reversal Part |
4500mm |
|
Manual Lifting Fixture Nos |
3 pieces |
|
Manual Operation Station Length |
1500mm |
| Hanger Material | Aluminum hanger |
| Riveting Type | Manual riveting |
| Power | 380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L18000mm*W800mm*H1900mm |
