| Name: | Automtic Riveting Machine | Riveting: | Automaic Riveting |
|---|---|---|---|
| Max. Busbar Height: | 330mm | Max. Busbar Length: | 6000mm |
| Working Efficiency: | Around 3000mm/4min | Length Of Reversal Part: | 4500mm |
| Manual Operation Station Length: | 1500mm | Power: | 380~415VAC 50~60Hz 5kW |
| Suit For: | Low Voltage Busway | Other Name: | Busway Horizontal Assembly Machine |
| Other Name 2: | Plug-In Busway Machine | Other Name 3: | Low Voltage Busway Assembly Machine |
| High Light: | 4500mm Busbar Assembly Line,Busbar Assembly Line Single Layer,3000mm/4min Automatic Busduct machine |
||
Compact Busway Manufacturing Line with Integrated Control System for Automatic Production Line
Function introduction

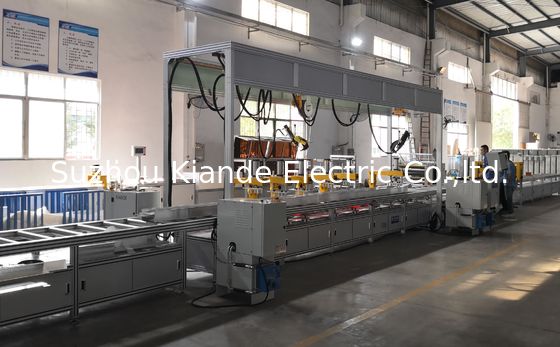

Semi-automatic assembly line is composed of three parts, pre-assembly station, automatic reversal station and accessory assembly station.
Pre-assembly station: Operators will pre-assemble and fix busbar main parts by the fixtures and transfer the busbar to the automatic reversal station manually.
Automatic reversal station: When busbar arrives in the reversal station, operator shall fix the busbar by clamp and start riveting on one side. After one side is done, rotators will be reversed 180 degrees for other side’s riveting.
Accessory assembly station: After busbar is riveted, operator will assemble the busbar accessories at this station.
Advantage:
Saving labors and make sure the riveting position
Equipment data on semi automatic busbar assembly line
| No. | Parameters |
| Model | KD-ZDX/H-4-6(4.5) |
|
Max. Busbar Height |
330mm (Single Layer) |
|
Max. Busbar Length |
6000mm |
|
Working Efficiency |
Around 3000mm/4min |
| Riveting Machine | included |
|
Length of Reversal Part |
4500mm |
|
Manual Lifting Fixture Nos |
3 pieces |
|
Manual Operation Station Length |
1500mm |
| Hanger Material | Aluminum hanger |
| Riveting Type | Manual riveting |
| Power | 380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L18000mm*W800mm*H1900mm |
