|Name:||CNC Busbar Punching Machine||Bending Power Type:||Hydraulic And Pneumatic Hybrid|
|Die:||Fast Die Change||Bending Thickness:||3-10mm|
|Workplace Size:||L450mm*W340mm||Air Source:||0.6MPa|
|Pressure:||40T Or 50T, Max. 80T||Equipment Dimension:||L680mm* W580mm* H2600mm|
|Power:||220~230VAC 50~60Hz 80W|
6mm busbar processing machine,
Aluminum Copper busbar processing machine,
0.6MPa Busbar Bending Machine

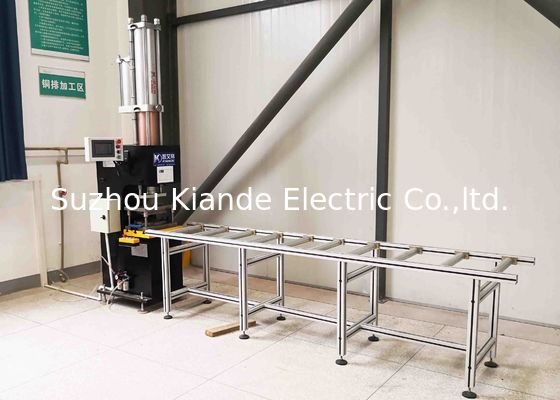

6mm Aluminum Copper Bar Processing Machine with Bending Punching Functions
1. Using compressed air as the power source, it is highly efficient and easy to operate, with simple structure and minimal maintenance.
2. Equipped with anti-rotation guide rods and guide plates, with high precision, which can adapt to high-speed precision blanking.
3. Two-hand control or foot pedaling can be selected. Ensure the personal safety of operators.
4. The operation is simple, the safety type is high, the foot switch is used to control the solenoid valve, the structure is simple, the failure rate is low, and the production efficiency is improved.
5. There is no noise generated by the hydraulic system during standby, which can save power consumption and reduce production costs.
6. The height, speed, stroke, pressure and stamping time can be adjusted arbitrarily according to different products or molds.
Digital bus bar punching machine is used to punch the two ends of busbar in one time to guarantee parallelism between busbar profile and conductor. This parallelism ensures the reliable connection between conductor and joint which can control joint temperature rising. Key point is that machine can adjust the rebound coefficient according to conductor’s material and width. Rebound coefficient varies by bending or different conductor width and this kind of adjustment can guarantee the parallelism.
Equipment data on digital copper bar punching machine
|Bending Power Type||Hydraulic and pneumatic hybrid|
40T or 50T, Max. 80T
|Die||Fast die change|
|Control Mode||Digital control|
|Power||220~230VAC 50~60Hz 80W|
|Equipment Dimension||L680mm* W580mm* H2600mm|
