|Name:||CNC Busbar Punching Machine||Bending Power Type:||Hydraulic And Pneumatic Hybrid|
|Application:||Copper Or Aluminum Bar||Function:||Cutting Punching Bending|
|Die:||Fast Die Change||Bending Thickness:||3-10mm|
|Workplace Size:||L450mm*W340mm||Air Source:||0.6MPa|
|Pressure:||40T Or 50T, Max. 80T||Equipment Dimension:||L680mm* W580mm* H2600mm|
|Power:||220~230VAC 50~60Hz 80W|
horizontal Hydraulic busbar bending machine,
horizontal copper busbar bending machine,
hybrid copper busbar bending machine

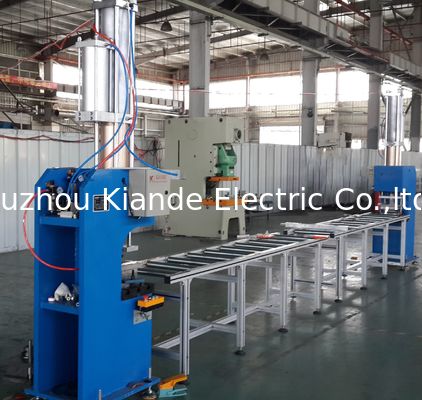

Hydraulic busbar bending machine for copper or aluminum bar processing with one time bending and two angles bent
We are the MANUFACTURER of high quality busbar machines with competitive price. The products are widely used in the following industries,such as voltage switchgear,electric transformer station,voltage transformer,etc.
Overview of busbar bending machine
The main function is processing copper and aluminum busbar with different specifications. Only need to select the corresponding processing unit, it can do different kinds of processing for copper and aluminum busbar quickly and easily, such as shearing, punching(circular hole and oblong hole), flat/horizontal bending, vertical bending U-bending, embossing, flat pressing, twisting, cable connector processing etc. Main features.
1. Using compressed air as the power source, it is highly efficient and easy to operate, with simple structure and minimal maintenance.
2. Equipped with anti-rotation guide rods and guide plates, with high precision, which can adapt to high-speed precision blanking.
3. Two-hand control or foot pedals can be selected. Ensure the personal safety of operators.
4. The operation is simple, the safety type is high, the footswitch is used to control the solenoid valve, the structure is simple, the failure rate is low, and the production efficiency is improved.
5. There is no noise generated by the hydraulic system during standby, which can save power consumption and reduce production costs.
6. The height, speed, stroke, pressure, and stamping time can be adjusted arbitrarily according to different products or molds.
A digital bus bar punching machine is used to punch the two ends of the busbar at one time to guarantee parallelism between the busbar profile and conductor. This parallelism ensures the reliable connection between conductor and joint which can control joint temperature rising. Key point is that the machine can adjust the rebound coefficient according to the conductor’s material and width. Rebound coefficient varies by bending or different conductor width and this kind of adjustment can guarantee the parallelism.
Equipment data on digital copper bar punching machine
|Bending Power Type||Hydraulic and pneumatic hybrid|
40T or 50T, Max. 80T
|Die||Fast die change|
|Control Mode||Digital control|
|Power||220~230VAC 50~60Hz 80W|
|Equipment Dimension||L680mm* W580mm* H2600mm|
