100MM Roller Coil Shearing Machine , Straightening Coil Cutting Line

100MM Roller Coil Shearing Machine , Straightening Coil Cutting Line
100MM Roller Coil Shearing Machine , Straightening Coil Cutting Line

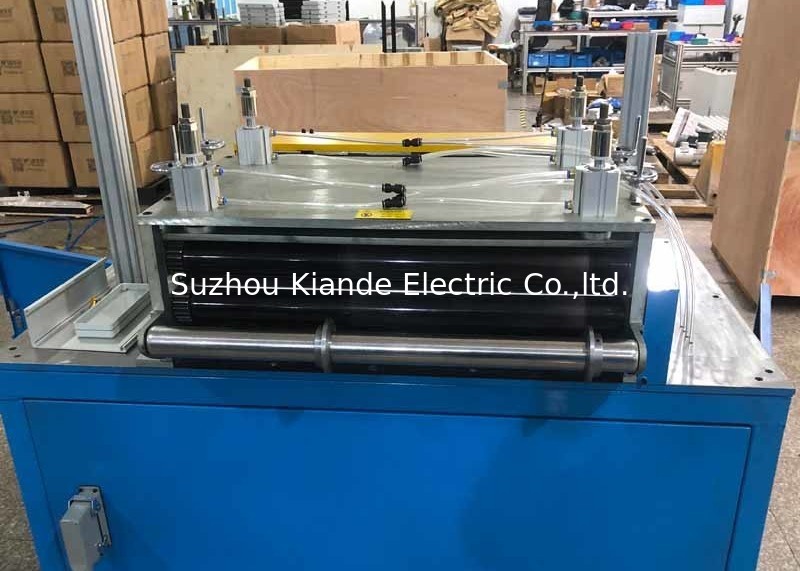

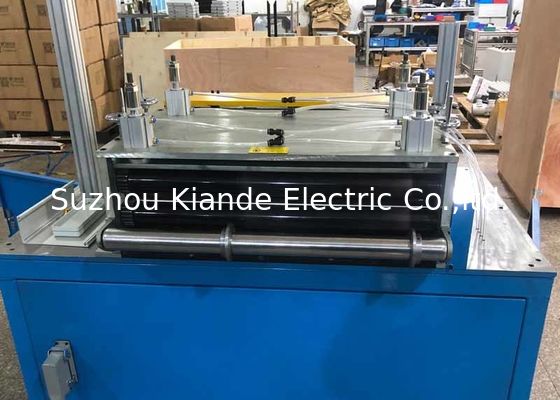

Large Image :  100MM Roller Coil Shearing Machine , Straightening Coil Cutting Line

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 10set/month
Detailed Product Description
Product Name: Steel Bar Straightening And Cutting Machine Diameter Of Roller: 100MM
Max Cutting Thickness: 0.2mm Cutting Precision: ±0.1mm
Cutting Length: 0-600mm Width Range: 0-700mm
High Light:

100MM roller coil shearing machine

,

Straightening coil shearing machine

,

100MM roller coil cutting line

This hydraulic bar straightening and cutting machine is used for straightening and straightening the cutting of steel and steel bars of the building with cold rolling, the failure rate of the equipment is low, and the traction speed is high,This machine is low consumption, no damage of rib, low noise, vibration, and is equipped with safety device, automatic counting parking device, has high production efficiency, safe and reliable work, equipment and other significant characteristics of low failure rate, simple product maintenance.



Features:

  • Advanced slitting process. High-efficiency hydraulic driving for expandable mandrels on decoiler and rewinder, tentioner,
  • clamping, coil loading, and unloading. An adjustable tensioner enables very precise rewinding.
  • Up-to-date PLC is adopted for the production line to increase its stability and reliability.Logic control of the whole line has
  • been accomplished.
  • Variable shearing speed. Decoiler, slitter and rewinder are in synchronized speed through speed ajustable motor driving system.
  • Loop pits baffles are designed to increase the convenience of operation. All the function and parameters have reached world advanced level.



Coil Weight Coil width 300mm with thickness 0.2mm Coil width 700 mm with thickness 0.2mm
Diameter of raw material Diameter of roller Diameter of raw material Diameter of roller
250kG 340-380 mm 100mm 220-270 mm 100mm
500kG 480-520 mm 310-360 mm
750kG 600-650 mm 380-430 mm
1000kG 650-700 mm 437-487 mm



Leveling speed 0—15m/min
Max cutting thickness 0.2mm
Roller Numbers 9
Cutting precision ±0.1mm
Cutting Length 0-600mm
Width Range 0-700mm



100MM Roller Coil Shearing Machine , Straightening Coil Cutting Line 0100MM Roller Coil Shearing Machine , Straightening Coil Cutting Line 1
