Sandwich Packing Busbar Machine With Workmanship Automatic

Automatic Sandwich Packing Busduct Packaging Machine With Exquisite Workmanship

Automatic resistance inspection machine for Busway Insulation Testing

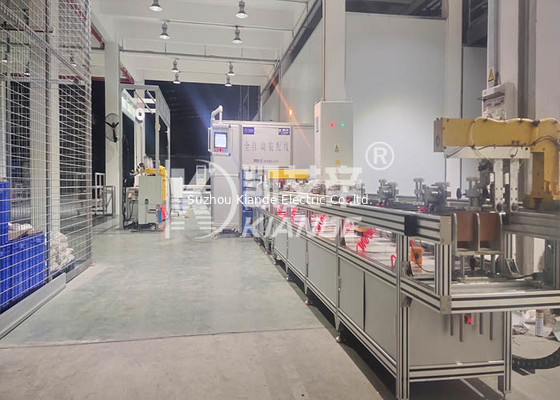

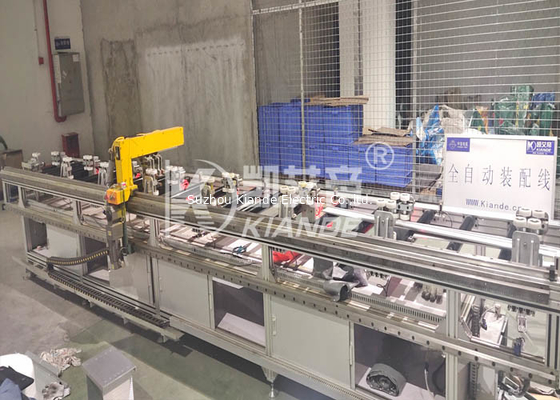

The automatic assembly machine can realize automatic assembly of busbar. It reduces manpower and improves the product quality and working efficiency. The working principle is to recognize the busbar type and adjust all the parameters of the machine automatically by scanning the bar code. With the interconnection of PLC, network, touch screen and IPC etc, it can also connect with ERP and automatic inspection machine.

The automatic assembly machine has self checking functions, including self diagnosing each input and output signal, preventing failures and counting the machine's OEE (comprehensive utilization rate) for the big data analysis in the future.

Equipment data on automatic busbar inspection line

Function introduction

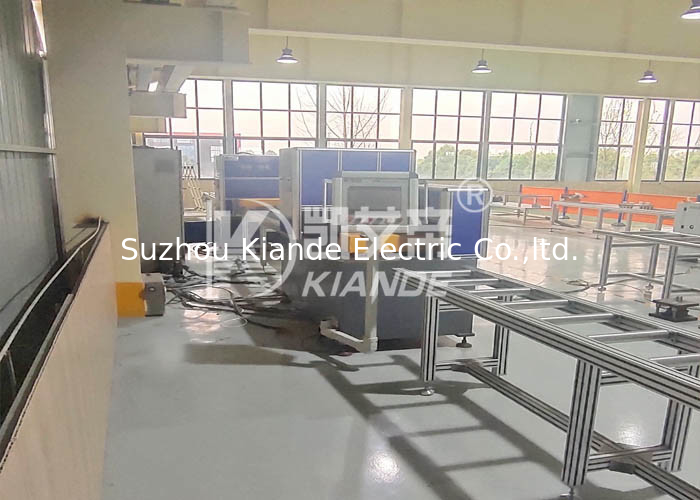

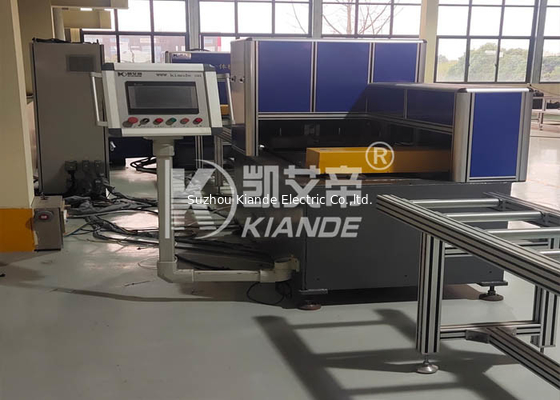

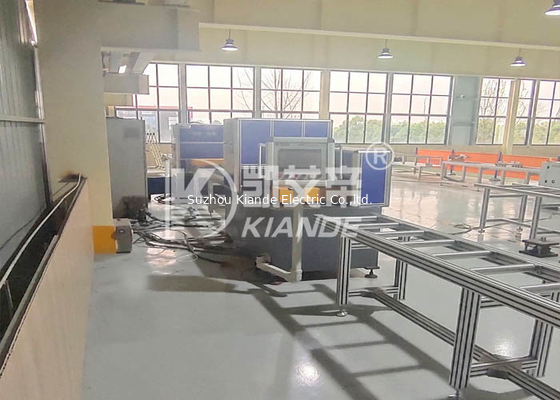

Busbar Automatic Production Line is composed of three parts, feeding positioning station, inspection station and discharge station. When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line. Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated.

Automatic inspection machine is mainly used for batch inspecting on the straight busbar. Elbow busbar type shall be tested on manual inspection machine.

This report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.

Busbar Trunking System is the is a system of distributing electric power using copper or aluminium busbar with suitable enclosures and good amount of protection to prevent the cables from getting damaged due to foreign bodies.

Busbars are now becoming irreplaceable simply because of the convenience and safety factor. While using traditional cables, the cost of cabling and trunking and the time taken for installation is much higher than busbars as well.

Installing busbars over conventional cabling has a range of advantages some of which are mentioned below:

Design: Busbars have a compact design through which compressed flat conductors can pass through the enclosure. Due to the compact designs, busbars require lesser space than traditional cabling systems and this is a major advantage when thousands of amperes of electricity need to be transmitted.

Heat Absorption: Since the design is compact and has a metal casing with well-defined surface, busbars can absorb heat generated while transmissions and distribution of electricity in the walls of the enclosure. The system of cooling is much better than traditional cabling system.

Flexibility: Busbars are more flexible in nature compared to cables in the sense that it can be used in any kind of structure with any configuration. They are easily modifiable and hence the addition of an extra room or building can be easily done. Busbars can also be relocated without much of a capital expenditure.

Cost Savings: Busbars can be mounted easily than a cable and incurs a lesser cost of installation than traditional cables. They can also be mounted at a lesser time than traditional cables.

Better Resistance: Busbars have rigid design elements and hence has better resistance than cables, especially in case of short circuits. Busbars have a minimum distance between the conductors which in turn reduces the induction of resistance. Busbars also have a thin and flat tire which helps in optimal distribution of density of current and in turn reduces resistance. Due to lower levels of density, voltage loss is much lower than cables for the same length.

Reduced Loss of Energy: Busbars have lower resistance than cables. Hence the loss of energy due to transmission and distribution is lower in Busbars. Busbars also have a limited growth of reactive power to operate compared to cable systems.
