| Name: | Busbar Automatic Production Line | Power: | 380~415VAC 50~60Hz 5kW |
|---|---|---|---|
| Grounding Test: | 0~25A | Insulation Test: | 1~1000V |
| High Voltage Withstanding Test: | 0~5000V | Servo Nos: | 2 Axis( Z Axis/X Axis) |
| Busbar Length: | 1200mm~6000mm | Busbar Height: | 100mm~650mm |
| Equipment Dimension: | L12000mm*W1200mm*H1900mm | ||
| High Light: | Auto Busbar Inspection Machine,Insulation Resistance Busbar Machine,PLC Control Busbar Inspection Machine |
||
Automatic Sandwich Busbar Production Line PLC Control
Automatic Busbar Inspection Machine with High Voltage Withstanding Insulation Resistance Grounding Test Functions
1. Suitable for bus bar of straight length type or L or Z type, length 500~3000mm, width less than 250mm and thickness no bigger than 6mm;
2. Working efficiency: 1m/minute;
3. Standard configuration: one piece air and hydraulic bending machine, one set of frame;
4. Automation level: semi-automation;
Feature
the inspection machine is controlled by PLC and can generate the inspection report which can be printed.
To inspect busbar withstanding voltage value and insulation resistance.
Fuction
HV withstanding test, insulation resistance test and grounding test
Function introduction

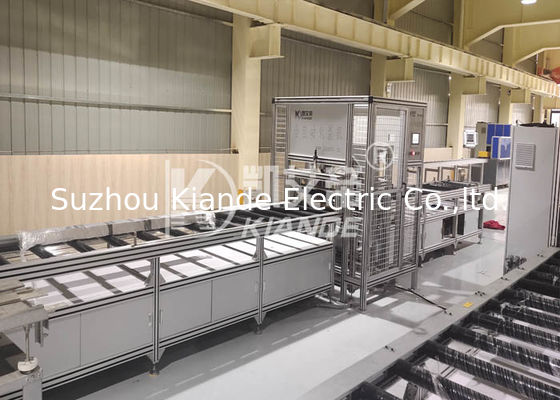

Busbar Automatic Production Line is composed of three parts, feeding positioning station, inspection station and discharge station. When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line. Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated.
Equipment data on automatic busbar inspection line
| No. | Parameters |
| Model | KD-JCX/NC-E/H-6 |
| Busbar Height | 100mm~650mm |
| Busbar Length | 1200mm~6000mm |
| Busbar Type | Straight length type |
| Position Type | Unilateral / Middle |
|
Working Efficiency |
2 min/piece(testing time is adjustable.) |
| Servo Nos | 2 axis( Z axis/X axis) |
|
Vision System |
Phase error judgment( optional) |
|
Printing System |
Bar code printing/ Report printing( optional) |
|
High Voltage Withstanding Test |
0~5000V |
| Insulation Test | 1~1000V |
| Grounding Test | 0~25A |
|
Power |
380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L12000mm*W1200mm*H1900mm |
