| Name: | Busbar Automatic Production Line | Power: | 380~415VAC 50~60Hz 5kW |
|---|---|---|---|
| Grounding Test: | 0~25A | Insulation Test: | 1~1000V |
| High Voltage Withstanding Test: | 0~5000V | Servo Nos: | 2 Axis( Z Axis/X Axis) |
| Busbar Length: | 1200mm~6000mm | Busbar Height: | 100mm~650mm |
| Equipment Dimension: | L12000mm*W1200mm*H1900mm | ||
| High Light: | 650mm Height Busbar Machine,Reversal Busbar Processing Machine,2 Axis Busbar Processing Machine |
||
Semi-Automatic Reversal Busbar Assembly Line Processing Machine
Automatic Busbar Inspection Machine with High Voltage Withstanding Insulation Resistance Grounding Test Functions
The main drive part of the machine adopts the popular servo drive form, with novel structure, abundant power and easy operation.No oil pollution for the work area, noise reduction, small occupation area, environmental protection and practical. The output force can reach 350KN, the servo drive easily controllable, and precisely and accurately linked with the PLC. It is enough to realize the functions of fast forward, fast retreat and slow inching, which can improve the processing efficiency and ensure the accuracy of bending, which is unmatched by hydraulic drive machines. Equipped with high-power, large inertia servo motor, optional bending die to achieve horizontal bending, vertical bending, twisting and other processing functions.
Feature
the inspection machine is controlled by PLC and can generate the inspection report which can be printed.
To inspect busbar withstanding voltage value and insulation resistance.
Fuction
HV withstanding test, insulation resistance test and grounding test
Function introduction

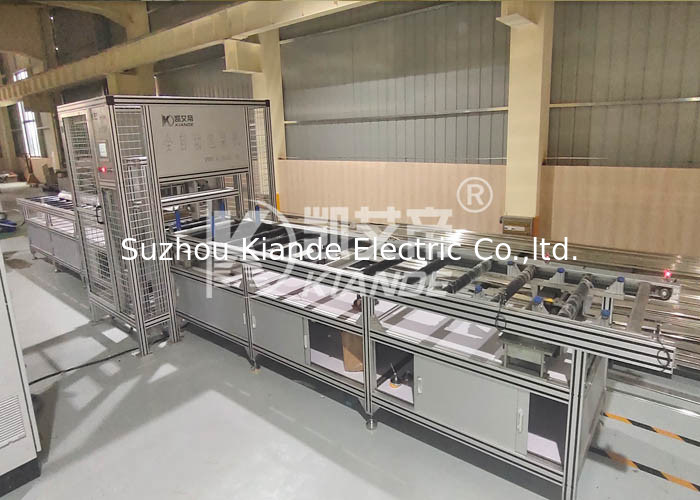

Busbar Automatic Production Line is composed of three parts, feeding positioning station, inspection station and discharge station. When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line. Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated.
Equipment data on automatic busbar inspection line
| No. | Parameters |
| Model | KD-JCX/NC-E/H-6 |
| Busbar Height | 100mm~650mm |
| Busbar Length | 1200mm~6000mm |
| Busbar Type | Straight length type |
| Position Type | Unilateral / Middle |
|
Working Efficiency |
2 min/piece(testing time is adjustable.) |
| Servo Nos | 2 axis( Z axis/X axis) |
|
Vision System |
Phase error judgment( optional) |
|
Printing System |
Bar code printing/ Report printing( optional) |
|
High Voltage Withstanding Test |
0~5000V |
| Insulation Test | 1~1000V |
| Grounding Test | 0~25A |
|
Power |
380~415VAC 50~60Hz 5kW |
| Equipment Dimension | L12000mm*W1200mm*H1900mm |
