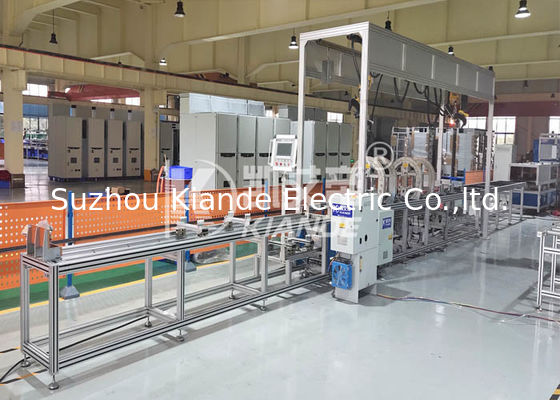

Semi Automatic Busbar Assembly Line For Busway System

Semi Automatic Busbar Assembly Line For Busway System
Semi Automatic Busbar Assembly Line For Busway System Semi Automatic Busbar Assembly Line For Busway System Semi Automatic Busbar Assembly Line For Busway System Semi Automatic Busbar Assembly Line For Busway System

Large Image :  Semi Automatic Busbar Assembly Line For Busway System

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-JCX-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customized
Packaging Details: plywood case
Delivery Time: 30 working days
Payment Terms: T/T, L/C
Supply Ability: 10set/ month
Detailed Product Description
Name: Busbar Automated Inspection Machines Type: Automatic
Insulation Test: 1~1000V Grounding Test: 0~25A
Power: 380~415VAC 50~60Hz 5kW Busbar Length: 1200mm~6000mm
High Voltage Withstanding Test: 0~5000V Servo Nos: 2 Axis ( Z Axis / X Axis )
Busbar Height: 100mm~650mm Equipment Dimension: L12000mm*W1200mm*H1900mm
High Light:

Busway System Busbar Assembly Line

,

Busbar Assembly Line Semi Auto

,

Automatic Storage Busbar Machine

Semi-Automatic Busbar Assembly Line For Busway System

Reports Automatic Storage Busbar Machine For Grounding Test





1) Material feed-in of roller conveyor: length L = 6m, width W = 0.7m, height H =0.8m (consistent with the assembly line), rack is made of aluminum Siemens deceleration speed motor drives, power 0.75kW, with worm reducer of power: Φ50.
2) Horizontal winding machine: length L = 0.8m, width W = 1.7m, height H = 1.95m, Taiwan's Lee Ming motor drive, power 1.1kW, one rotating disk, made of aluminum, rotating disk driven by a V-belt, 4 cages made of carbon steel, rack 1 set, wrapped with plate of 1.5mm hole
3) Material feed-out of roller conveyor: length L = 6m, width W = 0.7m, height H = 800mm, rack made of aluminum, Siemens deceleration speed motor drives, power 0.75kW with worm reducer Φ50, the conveyors are set on the two sides of packaging machine.
4) To control by PLC



Busbar production equipment



Kiande is specialized in manufacturing and customizing busbar production machines including manual production line, semi-automatic production line, automatic production line, automatic inspection machine, automatic packaging machine, automatic mylar forming machine, automatic mylar slitting machine, profile cutting machine, busbar processing machine, gas hydraulic press machine, joint bar processing center, welding robot, elbow production machine, NC position fixture and other machines related to busbar processing .



Function & advantage


1) High voltage withstanding and insulation testing.
2) Testing result can be keep in computer for record.



No. Parameters
Model KD-JCX/NC-E/H-6
Busbar Height 100mm~650mm
Busbar Length 1200mm~6000mm
Busbar Type Straight length type
Position Type Unilateral / Middle

Working Efficiency

2 min/piece(testing time is adjustable.)

Servo Nos 2 axis( Z axis/X axis)

Vision System

Phase error judgment( optional)

Printing System

Bar code printing / Report printing (optional)

High Voltage Withstanding Test

0~5000V
Insulation Test 1~1000V
Grounding Test 0~25A

Power

380~415VAC 50~60Hz 5kW
Equipment Dimension L12000mm*W1200mm*H1900mm



FAQ

Q1: Are you a factory or trading company?

A1: Our factory located in Zhengjiang city which is specialized in busbar assembly equipment and switchgear assembly equipment such as busbar assembly system, busbar testing machine, busbar wrapping machine and busbar accessores. Our sales office located in Suzhou city which traffic is more convinent.



Q2: Where is your factory location? How can I visit there?

A2: Our factory is located in Jiangsu, China, welcome to visit us at any time. You can take the plane to Shanghai and then take the highway to Changzhou Bei Station(1 hour), then we will pick u up.



Q3: How does your factory do regarding quality control?

A3: Quality is priority. We always attach great importance to quality controlling from the beginning to the end. We support to inspect machine before shipment.



Semi Automatic Busbar Assembly Line For Busway System 0
