PLC Control Self Piercing Busbar Riveting Machine Aluminum

Self Piercing Busbar Riveting Machine Aluminum Profile Assembly Machine

Automatic Busway Production Riveting Machine for Aluminum Profile

The punch is pushing the rivet through the sheet metal layers, until the rivet is flush with the surface of the punch-side of the part. During the subsequent reprints, the punch and stripper presses the materials onto the embossing ring of the die. The die side material flows into the annular groove of the rivet and a form-lock and force-fit connection is created.

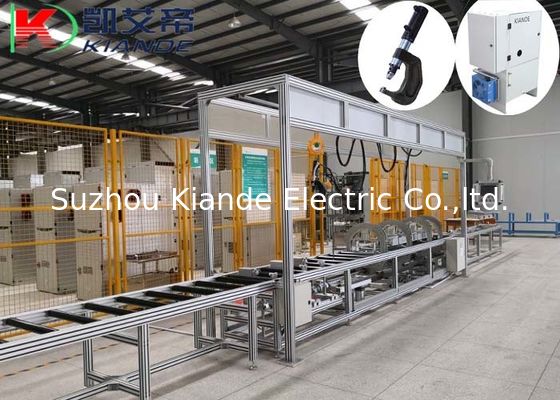

1, The supercharger drives the split cylinder as the riveting power source, which has the characteristics of low noise, low energy consumption and no pollution.
2, The servo system controls the rivet clamp and the left and right movement, to realize the two sides are simultaneously riveted by the forward movement and the stop action of the roller.
3, The discharge line has a lateral removal function.
4, The busbar casing is no more than 3 meters in length.
5, Feeding line has servo clamping mechanism, the most front-end is 3m roller table

Electrical parts:

• Computer and PLC are the key parts of the control system. The network connects the computer and Omron PLC to ethernet protocol.
• Set the parameter in every riveting part;
• Set the equipment run speed and manual position;
• Communicate with barcode scanned machine;
• Communicate with the riveting machine control system;

Features:

1, The supercharger drives the split cylinder as the riveting power source, which has the characteristics of low noise, low energy consumption and no pollution.
2, The servo system controls the rivet clamp and the left and right movement, to realize the two sides are simultaneously riveted by the forward movement and the stop action of the roller.
3, The discharge line has a lateral removal function.
4, The busbar casing is no more than 3 meters in length.
5, Feeding line has servo clamping mechanism, the most front-end is 3m roller table
