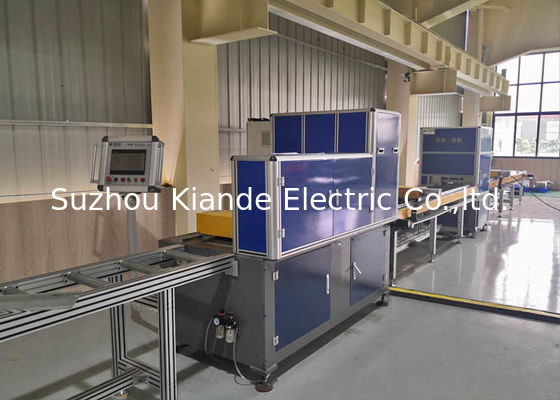

Report Automatically Printing Irregular Busbar Machine 0 - 5000V

Report Automatically Printing Irregular Busbar Machine 0 - 5000V
Report Automatically Printing Irregular Busbar Machine 0 - 5000V

Large Image :  Report Automatically Printing Irregular Busbar Machine 0 - 5000V

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-JCX/NC-E/H -6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customized
Packaging Details: plywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 10set/ month
Detailed Product Description
Name: Busbar Inspection Machine Grounding Test: 0~25A
High Voltage Withstanding Test: 0~5000V Busbar Length: 500mm~3000mm
Servo Nos: L6200mm*W800mm*H800mm Busbar Height: 100mm~650mm
Insulation Test: 1~1000V Power: 380~415VAC 50~60Hz 3kW
High Light:

Automatically Printing Busbar Machine

,

Irregular Busbar Processing Machine

,

Automatically Printing Busbar Inspection Machine

Report Automatically Printing Irregular Busbar Machine





Features
1) High voltage withstanding and insulation testing.
2) Testing result can be keep in computer for record.

3) HV withstanding test, insulation resistance test and grounding test



Description



Manual Busbar Inspection Machine is mainly used for inspecting short straight busbar, elbow busbar, terminal busbar and etc.. It’s composed of two parts: fixture positioning and main inspection instruments. Fixture positioning part is operated manually while inspection instruments will test the busbar and generate the report automatically.



Equipment data on Manual busbar inspection line



No. Parameters
Suitable Busbar Type Irregular busbar
Position Type Unilateral
Printing System Bar code printing / Report printing ( optional )
Busbar Height 100mm~650mm
Busbar Length 500mm~3000mm
High Voltage Withstanding Test 0~5000V
Insulation Test 1~1000V
Grounding Test 0~25A
Power 380~415VAC 50~60Hz 3kW
Equipment Dimension L6200mm*W800mm*H800mm



FAQ

Q1: Are you a factory or trading company?

A1: Our factory located in Zhengjiang city which is specialized in busbar assembly equipment and switchgear assembly equipment such as busbar assembly system, busbar testing machine, busbar wrapping machine and busbar accessores. Our sales office located in Suzhou city which traffic is more convinent.
