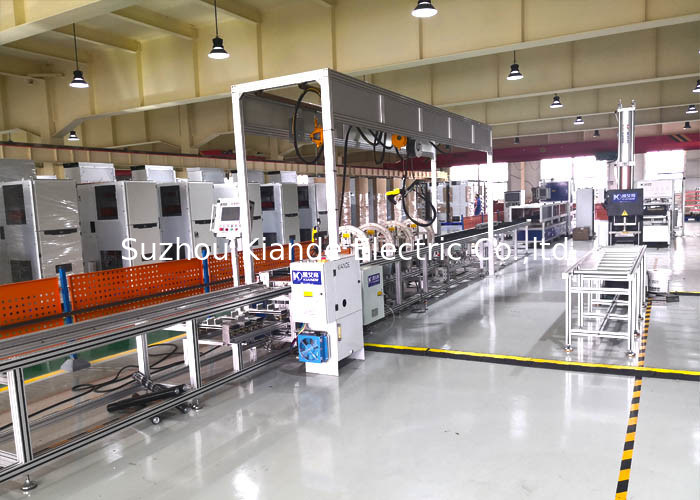

Auto Inspection Busbar Machine Straight Length Type

Auto Inspection Busbar Machine Straight Length Type
Auto Inspection Busbar Machine Straight Length Type

Large Image :  Auto Inspection Busbar Machine Straight Length Type

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-JCX-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customized
Packaging Details: plywood case
Delivery Time: 60 working days
Payment Terms: T/T, L/C
Supply Ability: 10set/ month
Detailed Product Description
Name: Busbar Inspection Machine Power: 380~415VAC 50~60Hz 5kW
Insulation Test: 1~1000V Type: Automatic Inspection Machine
High Voltage Withstanding Test: 0~5000V Grounding Test: 0~25A
Servo Nos: 2 Axis ( Z Axis/X Axis) Busbar Length: 1200mm~6000mm
Busbar Height: 100mm~650mm Equipment Dimension: L12000mm*W1200mm*H1900mm
High Light:

Straight Length Type Busbar Machine

,

Auto Inspection Busbar Machine

,

Straight Length Busbar Inspection Machine

Straight Length Type Auto Inspection Busbar Machine



Function


1) High voltage withstanding and insulation testing.
2) Testing result can be keep in computer for record.



Description


Automatic busbar inspection machine is composed of three parts, feeding position station, inspection station and discharge station. When the busbar enters the fixed position, the control system will select the right testing fixture according to bar code or previous assembly station to start testings of high voltage withstanding, insulation resistance and grounding, make judgement whether it’s qualified and generate testing report. This report can be saved, printed on site and stored remotely etc. It can be set according to customer’s requirements.

Automatic inspection machine is mainly used for batch inspecting the straight busbar, elbow type should be tested on manual inspection machine.



No. Parameters
Model KD-JCX/NC-E/H-6
Busbar Height 100mm~650mm
Busbar Length 1200mm~6000mm
Busbar Type Straight length type
Position Type Unilateral / Middle

Working Efficiency

2 min/piece(testing time is adjustable.)

Servo Nos 2 axis( Z axis/X axis)

Vision System

Phase error judgment( optional)

Printing System

Bar code printing/ Report printing( optional)

High Voltage Withstanding Test

0~5000V
Insulation Test 1~1000V
Grounding Test 0~25A

Power

380~415VAC 50~60Hz 5kW
Equipment Dimension L12000mm*W1200mm*H1900mm



FAQ

Q1: Are you a factory or trading company?

A1: Our factory located in Zhengjiang city which is specialized in busbar assembly equipment and switchgear assembly equipment such as busbar assembly system, busbar testing machine, busbar wrapping machine and busbar accessores. Our sales office located in Suzhou city which traffic is more convinent.
