Name: | Automated Inspection Machines | Power: | 380~415VAC 50~60Hz 3kW |
---|---|---|---|
Busbar Height: | 100mm~650mm | Busbar Length: | 500mm~3000mm |
Grounding Test: | 0~25A | Insulation Test: | 1~1000V |
High Voltage Withstanding Test: | 0~5000V | Servo Nos: | L6200mm*W800mm*H800mm |
High Light: | Auto Busbar Machine,Busbar Inspection Machines,Busbar Machine Automated |
Automated Short Circuit Withstand Insulatedb busbar Inspection machines
Feature
Customized
testing report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.
Fuction
Short circuit withstanding test, insulation resistance test and grounding test
Function introduction

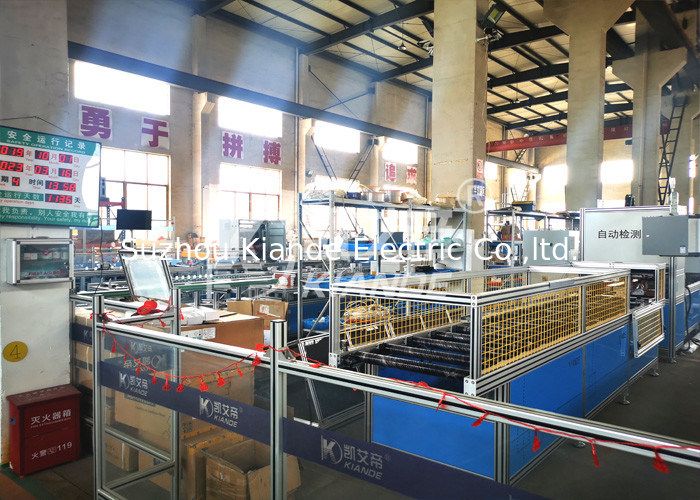

Manual Busbar Inspection Line is mainly used for inspecting short straight busbar, elbow busbar, terminal busbar and etc.. It’s composed of two parts: fixture positioning and main inspection instruments. Fixture positioning part is operated manually while inspection instruments will test the busbar and generate the report automatically.
Equipment data on Manual busbar inspection line
No. | Parameters |
Model | KD-JCX/M-4 |
Busbar Height | 100mm~650mm |
Busbar Length | 500mm~3000mm |
Suitable Busbar Type | Straight busbar |
Position Type | Unilateral |
Printing System |
Bar code printing/ Report printing( optional) |
High Voltage Withstanding Test |
0~5000V |
Insulation Test | 1~1000V |
Grounding Test | 0~25A |
Power |
380~415VAC 50~60Hz 3kW |
Equipment Dimension |
L6200mm*W800mm*H800mm |
