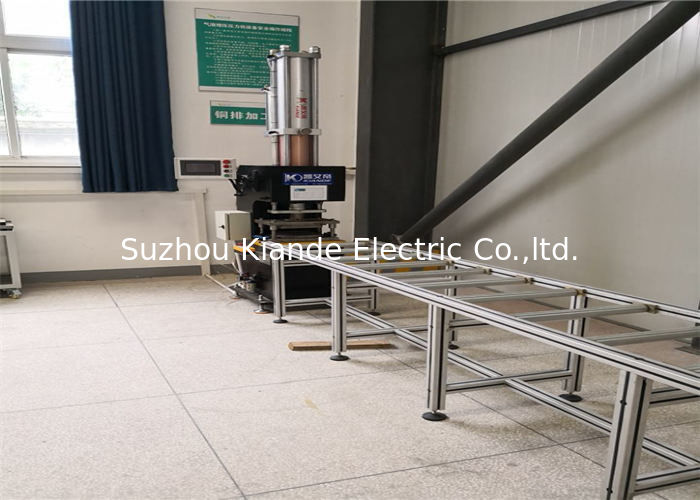

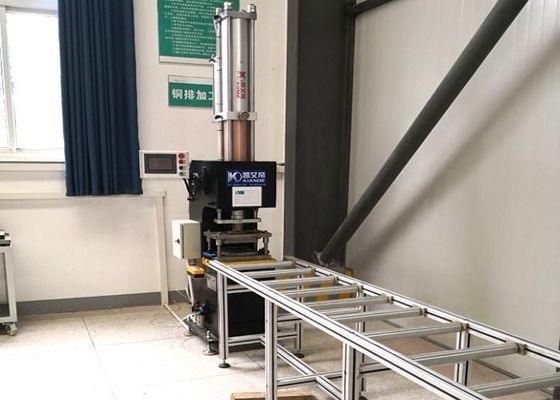

CNC Hydraulic Digital Control Busbar Punching Machine

CNC Hydraulic Digital Control Busbar Punching Machine
CNC Hydraulic Digital Control Busbar Punching Machine CNC Hydraulic Digital Control Busbar Punching Machine CNC Hydraulic Digital Control Busbar Punching Machine

Large Image :  CNC Hydraulic Digital Control Busbar Punching Machine

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-YYJ-40(50)T
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 10set/month
Detailed Product Description
Name: Bus Bar Punching Machine Bending Power Type: Hydraulic And Pneumatic Hybrid
Die: Fast Die Change Workplace Size: L450mm*W340mm
Air Source: 0.6MPa Equipment Dimension: L680mm* W580mm* H2600mm
Pressure: 40T Or 50T, Max. 80T Power: 220~230VAC 50~60Hz 80W
Model: KD-YYJ-40(50)T
High Light:

CNC Busbar Punching Machine

,

0.6MPa Busbar Punching Machine

,

Hydraulic Busbar Bending Machine

CNC Hydraulic Digital Control Busbar Punching Machine



Function introduction

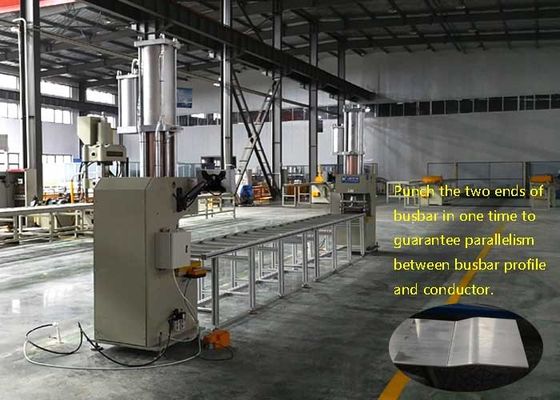

Digital bus bar punching machine is used to punch the two ends of busbar in one time to guarantee parallelism between busbar profile and conductor. This parallelism ensures the reliable connection between conductor and joint which can control joint temperature rising. Key point is that machine can adjust the rebound coefficient according to conductor’s material and width. Rebound coefficient varies by bending or different conductor width and this kind of adjustment can guarantee the parallelism.

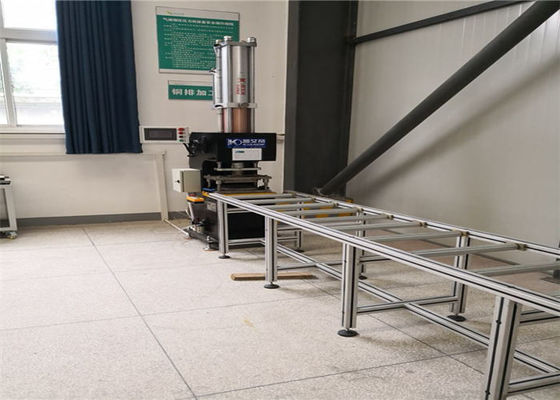

CNC Hydraulic Digital Control Busbar Punching Machine 0



Equipment data on digital copper bar punching machine



No. Parameters
Model KD-YYJ-40(50)T
Bending Power Type Hydraulic and pneumatic hybrid
Pressure

40T or 50T, Max. 80T

Die Fast die change
Workplace Size L450mm*W340mm
Control Mode Digital control
Air Source 0.6MPa
Power 220~230VAC 50~60Hz 80W
Equipment Dimension L680mm* W580mm* H2600mm





Busbar Trunking System is the is a system of distributing electric power using copper or aluminium busbar with suitable enclosures and good amount of protection to prevent the cables from getting damaged due to foreign bodies. ... The system of cooling is much better than traditional cabling system.
