Product Details:
Payment & Shipping Terms:
|
| Name: | Machine For Busduct | Power: | 380 VAC 50~60Hz 3kW |
|---|---|---|---|
| Busbar Height: | 100mm~650mm | Busbar Length: | 500mm~3000mm |
| Grounding Test: | 0~25A | Insulation Test: | 1~1000V |
| High Voltage Withstanding Test: | 0~5000V | Servo Nos: | L6200mm*W800mm*H800mm |
| High Light: | 500mm Compact Bubar Machine,3000mm Short Circuit Withstand Machine,3000mm Compact Bubar Machine |
||
Machine for Compact Bubar Short-Circuit Withstand and insulated Testing
Feature
Customized
testing report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.
Fuction
Short circuit withstanding test, insulation resistance test and grounding test
Function introduction

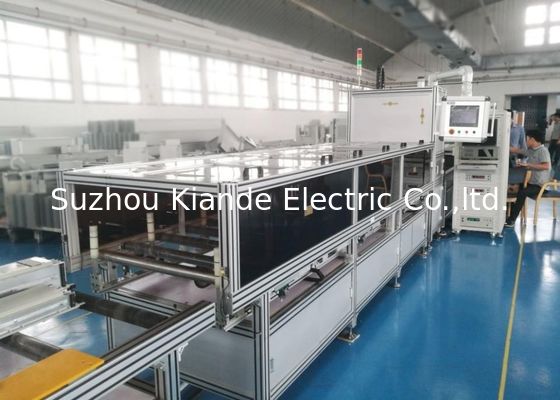

Manual Busbar Inspection Line is mainly used for inspecting short straight busbar, elbow busbar, terminal busbar and etc.. It’s composed of two parts: fixture positioning and main inspection instruments. Fixture positioning part is operated manually while inspection instruments will test the busbar and generate the report automatically.
Equipment data on Manual busbar inspection line
| No. | Parameters |
| Model | KD-JCX/M-4 |
| Busbar Height | 100mm~650mm |
| Busbar Length | 500mm~3000mm |
| Suitable Busbar Type | Straight busbar |
| Position Type | Unilateral |
|
Printing System |
Bar code printing/ Report printing( optional) |
|
High Voltage Withstanding Test |
0~5000V |
| Insulation Test | 1~1000V |
| Grounding Test | 0~25A |
|
Power |
380~415VAC 50~60Hz 3kW |
|
Equipment Dimension |
L6200mm*W800mm*H800mm |
