| Description: | Belleville Spring Washers | Surface: | Dacro |
|---|---|---|---|
| Model: | φ75*5mm | Material: | Spring Steel Strip |
| Usage: | Increase The Load Capacity | Thickness: | 5mm,6mm |
| High Light: | 5mm Belleville Spring Washers,6mm disc spring washer,6mm Belleville Spring Washers |
||

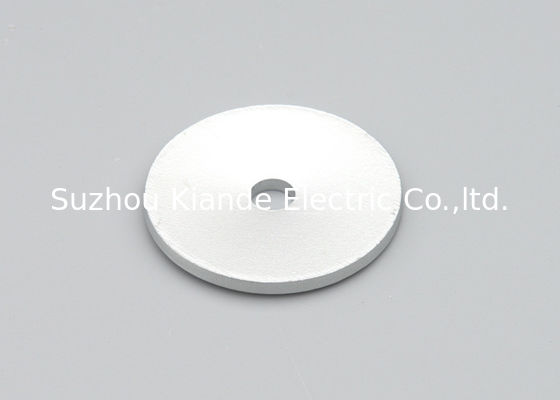

Belleville Spring Washers with elastic dics made by spring steel strip
Belleville washer is to absorb loads by acting as a spring. When a load is applied a
Belleville washer, the washer compresses. At the same time, the Belleville washer
exerts an equal amount of force against the object.
| Model | Material | Hole Diameter | Surface Treatment |
| φ37*3mm | 65Mn | φ8.5mm | Galvanized Treatment |
| φ74*4mm | 65Mn | φ13mm | Dacromet Treatment |
| φ75*5mm | 65Mn | φ13mm | Dacromet Treatment |
| φ76*5mm | 65Mn | φ13mm | Dacromet Treatment |
| φ90*6mm | 65Mn | φ13mm | Dacromet Treatment |
Joint block is operatable by one / two bolts.
Joint assembly can be removed / installed at any time in installed condition.
Disc spring washer are used in Uniblock joint to uniformly distribute pressure.
Recommended torque for tightening is 7 Kg-mtr.
These joints are specially designed to accommodate thermal expansion of busbars and housing.
