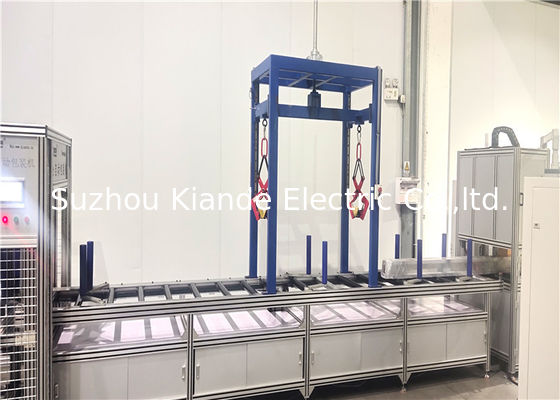

100mm Short Straight Busduct Testing Equipment for grounding test

100mm Short Straight Busduct Testing Equipment for grounding test
100mm Short Straight Busduct Testing Equipment for grounding test
video play

Large Image :  100mm Short Straight Busduct Testing Equipment for grounding test

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-JCX/NC-E/H -4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customized
Packaging Details: plywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 10set/ month
Detailed Product Description
Name: Machine For Busduct Power: 380~415VAC 50~60Hz 3kW
Busbar Height: 100mm~650mm Busbar Length: 500mm~3000mm
Grounding Test: 0~25A Insulation Test: 1~1000V
High Voltage Withstanding Test: 0~5000V Servo Nos: L6200mm*W800mm*H800mm
High Light:

100mm Busduct Testing equipment

,

Unilateral Busduct Testing equipment

,

Unilateral Busduct machine

Machine for Busduct Short-Circuit Withstand and insulated Testing





Feature

Customized testing report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.



Fuction

Short circuit withstanding test, insulation resistance test and grounding test



Function introduction



Manual Busbar Inspection Line is mainly used for inspecting short straight busbar, elbow busbar, terminal busbar and etc.. It’s composed of two parts: fixture positioning and main inspection instruments. The fixture positioning part is operated manually while inspection instruments will test the busbar and generate the report automatically.



Equipment data on Manual busbar inspection line



No. Parameters
Model KD-JCX/M-4
Busbar Height 100mm~650mm
Busbar Length 500mm~3000mm
Suitable Busbar Type Straight busbar
Position Type Unilateral

Printing System

Bar code printing/ Report printing( optional)

High Voltage Withstanding Test

0~5000V
Insulation Test 1~1000V
Grounding Test 0~25A

Power

380~415VAC 50~60Hz 3kW

Equipment Dimension

L6200mm*W800mm*H800mm
