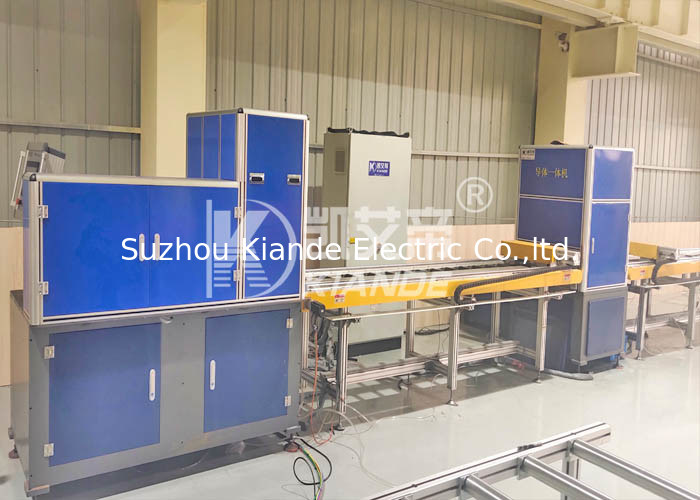

Automatic Busbar Assembly Line For Busway System Production

Automatic Busbar Assembly Line For Busway System Production
Automatic Busbar Assembly Line For Busway System Production
video play

Large Image :  Automatic Busbar Assembly Line For Busway System Production

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-JCX/NC-E/H -4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customized
Packaging Details: plywood case
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 10set/ month
Detailed Product Description
Name: Machine For Busduct Power: 380~415VAC 50~60Hz 3kW
Busbar Height: 100mm~650mm Busbar Length: 500mm~3000mm
Grounding Test: 0~25A Insulation Test: 1~1000V
High Voltage Withstanding Test: 0~5000V Servo Nos: L6200mm*W800mm*H800mm
High Light:

Busbar Assembly Line Automatic

,

Automatic Packing Busbar Machine

,

Busway System Busbar Assembly Line

Automatic Busbar Assembly Line For Busway System Production



Machine for Busduct Short-Circuit Withstand and insulated Testing



Automatic packing machine is to wrap film over the busbar to keep busbar away from the dust and moisture during transportation. This kind of packing machine can achieve the function of automatic feeding, automatic packing, automatic wrapping and automatic cutting. It can be matched with automatic stacking system to realize full automatic packing and storage. Machine is mainly designed for straight length busbar. For irregular busbar, please kindly adopt Kiande's other machines or wrap it manually.



Feature

Customized
testing report can be saved, printed on site and recorded remotely. Its format can be set according to customer’s requirements.



Fuction

Short circuit withstanding test, insulation resistance test and grounding test





Equipment data on Manual busbar inspection line



No. Parameters
Model KD-JCX/M-4
Busbar Height 100mm~650mm
Busbar Length 500mm~3000mm
Suitable Busbar Type Straight busbar
Position Type Unilateral

Printing System

Bar code printing/ Report printing( optional)

High Voltage Withstanding Test

0~5000V
Insulation Test 1~1000V
Grounding Test 0~25A

Power

380~415VAC 50~60Hz 3kW

Equipment Dimension

L6200mm*W800mm*H800mm
