| Certification: | ISO9001 | Name: | Bus Plug Stab Finger |
|---|---|---|---|
| Current: | 0-100A | Busbar Size: | 5mm |
| Type: | Compact Busbar Plug | Lifespan: | 4 Years |

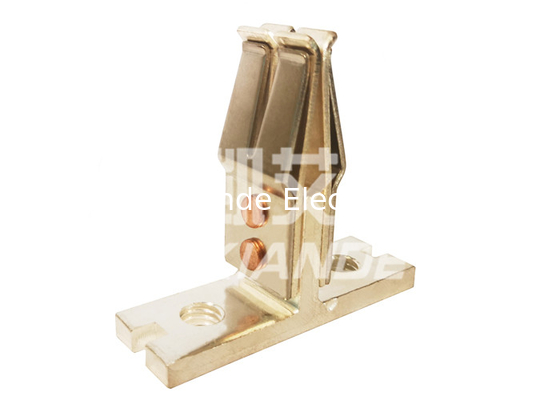

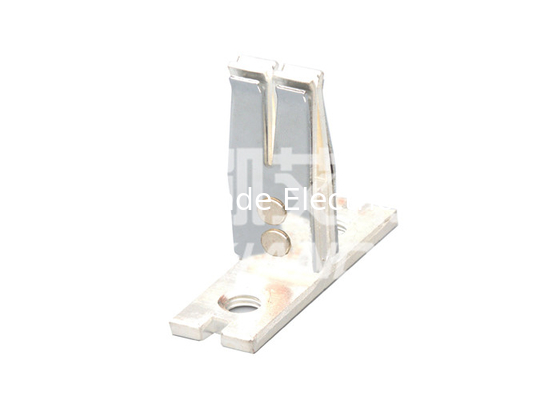

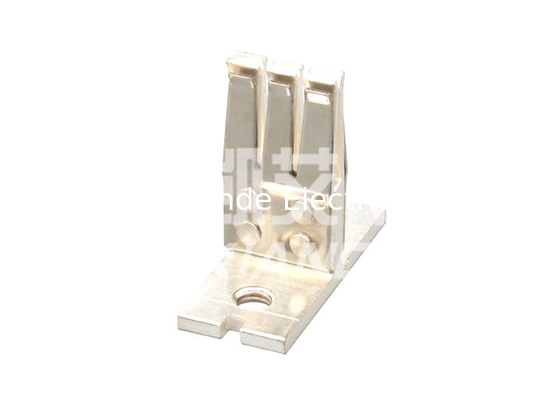

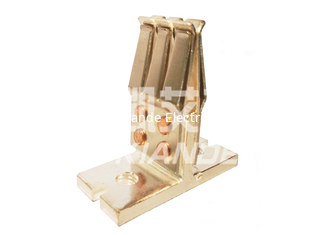

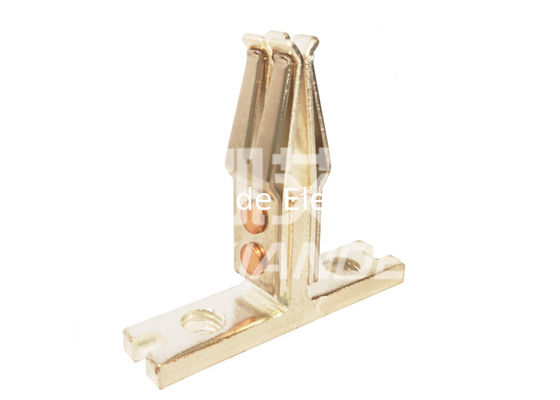

Bus Plug stab finger
| Model | Current | Busbar Size | Type | Remark |
| KDT-15-5 | 0-100A | 4/5mm | Compact busbar plug | T Type |
| KDT-18-5 | 100-200A | 4/5mm | Compact busbar plug | T Type |
| KDT-22-5 | 250-350A | 4/5mm | Compact busbar plug | T Type |
| KDT-30-5 | 400-630A | 4/5mm | Compact busbar plug | T Type |
| KDT-15-6 | 0~200A | 6mm | Compact busbar plug | T Type |
| KDT-18-6 | 250-350A | 6mm | Compact busbar plug | T Type |
| KDT-28-6 | 400-630A | 6mm | Compact busbar plug | T Type |
| KDF-125 | 0-125A | 19 phase distance, 22 phase distance, 26 phase distance above |
Air busbar plug | F Type |
| KDF-160 | 125~160A | Air busbar plug | ||
| KDF-250 | 160-250A | Air busbar plug | ||
| KDF-630 | 315~630A | Air busbar plug |
What is Bus Plug stab finger component?
Joint block is operatable by one / two shear off bolts.
Joint assembly can be removed / installed at any time in installed condition.
Disc spring washer are used in Uniblock joint to uniformly distribute pressure.
Recommended torque for tightening is 7 Kg-mtr.
These joints are specially designed to accommodate thermal expansion of busbars and housing.
Installation Guidence of Busduct Joint
Step1:dentify the correct joint stack (either 4W or 5W) and its phase orientation before Busduct joint pack installation
Step2: Align and connect both busduct terminal with joint stack connector.
Step3:Joint stack stopper acts a guideline to ensure a full contact surface of the overlapping conductors.
Step4: Tighten the double headed bolt by using socket wrench untile the outer head shear off.
Step5:Place joint pack covers on both sides of the busduct joint section and tighten all the bolts and nuts with socket wrench.
Busbar Trunking System is the is a system of distributing electric power using copper or aluminium busbar with suitable enclosures and good amount of protection to prevent the cables from getting damaged due to foreign bodies. ... The system of cooling is much better than traditional cabling system.
