| Name: | Busbar Punching Bending Cutting Machine | Bend Force (KN): | 400 |
|---|---|---|---|
| Punch Force (KN): | 300 | Piler Head Force (KN): | 300 |
| Power: | 380~415VAC 50~60Hz 10kW | Max. Hydraulic Force: | 31.5MPa |
| Max. Bending Width: | 300mm | Positioning Accuracy: | 0.2mm |
| High Light: | 2kW Busbar Cutting Machine,300mm Busbar Bending Machine,0.2mm Busbar Fabrication Equipment |
||
3 In 1 Hydraulic Busbar Cutting Punching And Bending Machine
Features:
1. Punching station: Turret punch unit installed with 6 punching dies, no need to change punching dies frequently, save time, reduce die change error, longthen the lifetime of punching dies.
2. Cutting station: two scissors shearing struction. there is no waste busbar generated. The cutting edge is smooth and neat.
3. Bending station: NC control the precision of bending angel. It can bend copper and aluminum busbar in vertical direction and horizontal direction. Through using the customized dies. The bending station can bend copper and aluminum round bars, twisting copper and aluminum flat bars, press cable joint etc.
Equipment data on busbar conductor multifunctional processing machine
| No. | Parameters | ||
| Model | KD-DTYTJ-C/A-4.5(6) | ||
|
Force (KN) |
Bend | 400 | |
| Punch | 300 | ||
| Piler Head | 300 | ||
| Stroke of X Axis | 1800mm | ||
| Speed of X Axis | 0~150mm/s | ||
| Marking | Barcode, QR code (optional) | ||
|

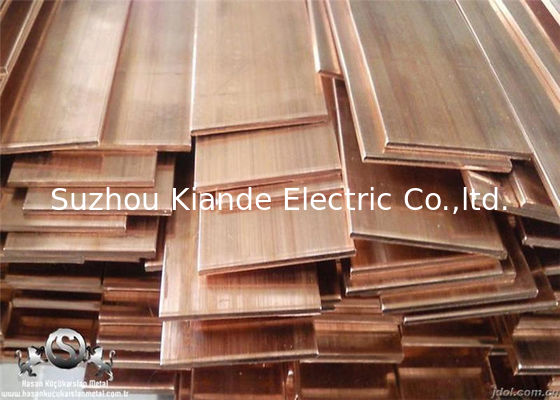

Conductor Size (Aluminum, Copper) |
Length | 1200mm~6000mm | |
| Width | 140mm~300mm | ||
| Thickness | 2mm~6mm | ||
| Positioning Accuracy | 0.2mm | ||
| Repetitive Positioning Accuracy | 0.05mm | ||
| Saw Blade Power | 2kW | ||
| Saw Blade Diameter | 400mm | ||
| Max. Bending Width | 300mm | ||
| Max. Bending Height Difference | 40mm | ||
| Max. Hydraulic Force | 31.5MPa | ||
| Power | 380~415VAC 50~60Hz 10kW | ||
Function introduction
By busbar conductor multifunctional processing machine, operator will input values such as length, width, piler position, quantity and etc. to initiate automatic working procedures including ends punching, piler opening, piler punching and etc..
Busduct advantage:
Easy and quick installation
Extensive choice of termination elements
Wide adaptability of busduct layout
High Short Circuit Withstand & Low Voltage Drop
Compact Dimensions
100% reusable standard elements
Accessories like tap offs can be fit anywhere along the busbar hence reducing
floor area usage
Lower Down time in case of faults
