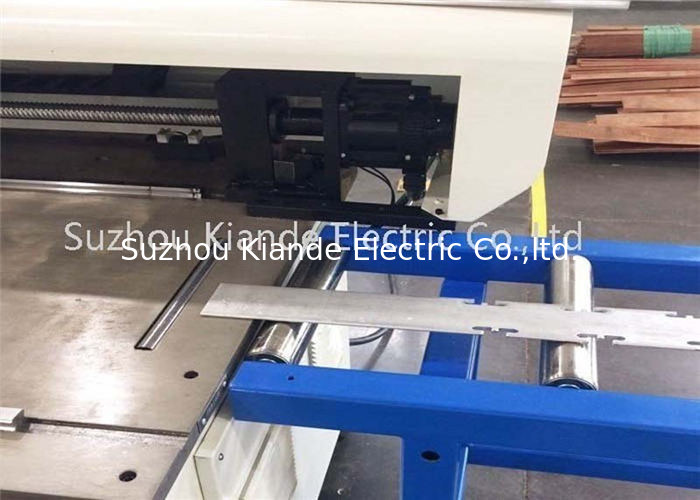

Outlet phase stab Punching Multi Functional Busbar Processing Machine

Outlet phase stab Punching Multi Functional Busbar Processing Machine
Outlet phase stab Punching Multi Functional Busbar Processing Machine
video play

Large Image :  Outlet phase stab Punching Multi Functional Busbar Processing Machine

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-DTYTJ-C/A-4.5(6)
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Supply Ability: 10set/month
Detailed Product Description
Name: Busbar Cutting Machine Bend Force (KN): 400
Max. Hydraulic Force: 31.5MPa Punch Force (KN): 300
Piler Head Force (KN): 300 Power: 380~415VAC 50~60Hz 10kW
Positioning Accuracy: 0.2mm Max. Bending Width: 300mm
High Light:

31.5MPa Busbar Processing Machine


300mm Busbar Processing Machine


400KN Busbar Processing Machine

Outlet phase stab Punching Multi Functional Busbar Processing Machine



Function & advantage

1) High voltage withstanding and insulation testing.
2) Testing result can be keep in computer for record.


Function introduction


By busbar conductor multifunctional processing machine, operator will input values such as length, width, piler position, quantity and etc. to initiate automatic working procedures including ends punching, piler opening, piler punching and etc..


Equipment data on busbar conductor multifunctional processing machine


No. Parameters
Model KD-DTYTJ-C/A-4.5(6)



Bend 400
Punch 300
Piler Head 300
Stroke of X Axis 1800mm
Speed of X Axis 0~150mm/s
Marking Barcode, QR code (optional)

Conductor Size (Aluminum, Copper)

Length 1200mm~6000mm
Width 140mm~300mm
Thickness 2mm~6mm
Positioning Accuracy 0.2mm
Repetitive Positioning Accuracy 0.05mm
Saw Blade Power 2kW
Saw Blade Diameter 400mm
Max. Bending Width 300mm
Max. Bending Height Difference 40mm
Max. Hydraulic Force 31.5MPa
Power 380~415VAC 50~60Hz 10kW


Outlet phase stab Punching Multi Functional Busbar Processing Machine 0


Busbar Trunking System is the is a system of distributing electric power using copper or aluminium busbar with suitable enclosures and good amount of protection to prevent the cables from getting damaged due to foreign bodies.


Busbars are now becoming irreplaceable simply because of the convenience and safety factor. While using traditional cables, the cost of cabling and trunking and the time taken for installation is much higher than busbars as well.


Installing busbars over conventional cabling has a range of advantages some of which are mentioned below:


Design: Busbars have a compact design through which compressed flat conductors can pass through the enclosure. Due to the compact designs, busbars require lesser space than traditional cabling systems and this is a major advantage when thousands of amperes of electricity need to be transmitted.


Heat Absorption: Since the design is compact and has a metal casing with well-defined surface, busbars can absorb heat generated while transmissions and distribution of electricity in the walls of the enclosure. The system of cooling is much better than traditional cabling system.


Flexibility: Busbars are more flexible in nature compared to cables in the sense that it can be used in any kind of structure with any configuration. They are easily modifiable and hence the addition of an extra room or building can be easily done. Busbars can also be relocated without much of a capital expenditure.


Cost Savings: Busbars can be mounted easily than a cable and incurs a lesser cost of installation than traditional cables. They can also be mounted at a lesser time than traditional cables.


Better Resistance: Busbars have rigid design elements and hence has better resistance than cables, especially in case of short circuits. Busbars have a minimum distance between the conductors which in turn reduces the induction of resistance. Busbars also have a thin and flat tire which helps in optimal distribution of density of current and in turn reduces resistance. Due to lower levels of density, voltage loss is much lower than cables for the same length.


Reduced Loss of Energy: Busbars have lower resistance than cables. Hence the loss of energy due to transmission and distribution is lower in Busbars. Busbars also have a limited growth of reactive power to operate compared to cable systems.
