PLC control copper busbar bending punching and outlet phase stab open machine

PLC control copper busbar bending punching and outlet phase stab open machine
PLC control copper busbar bending punching and outlet phase stab open machine PLC control copper busbar bending punching and outlet phase stab open machine PLC control copper busbar bending punching and outlet phase stab open machine PLC control copper busbar bending punching and outlet phase stab open machine

Large Image :  PLC control copper busbar bending punching and outlet phase stab open machine

Product Details:
Place of Origin: China
Brand Name: Kiande
Certification: ISO9001
Model Number: KD-DTYTJ-C/A-4.5(6)
Detailed Product Description
Name 2: Busbar Processing Machine Name 1: Busbar Manufacture Equipment
Max. Bending Width: 300mm Key Selling Points: Multifunctional
Bend Force (KN): 400 Max. Hydraulic Force: 31.5MPa
Positioning Accuracy: 0.2mm Piler Head Force (KN): 300
Punch Force (KN): 300 Power: 380~415VAC 50~60Hz 10kW
High Light:

Busbar Bending And Punching Machine

,

2kW Busbar Punching Machine

,

300mm Busbar Bending Machine

PLC control copper busbar bending punching and outlet phase stab open machine ​





Application



This processor is suitable for making large electric cabinet ,power distribution cabinets, switch cabinets and power transmission and distribution construction engineering construction site use.Suitable for transmission and distribution in a large workshop and site work, construction, and power distribution cabinets and switch cabinets, etc.





Equipment data on busbar conductor multifunctional processing machine



No. Parameters
Model KD-DTYTJ-C/A-4.5(6)

Force

(KN)

Bend 400
Punch 300
Piler Head 300
Stroke of X Axis 1800mm
Speed of X Axis 0~150mm/s
Marking Barcode, QR code (optional)

Conductor Size (Aluminum, Copper)

Length 1200mm~6000mm
Width 140mm~300mm
Thickness 2mm~6mm
Positioning Accuracy 0.2mm
Repetitive Positioning Accuracy 0.05mm
Saw Blade Power 2kW
Saw Blade Diameter 400mm
Max. Bending Width 300mm
Max. Bending Height Difference 40mm
Max. Hydraulic Force 31.5MPa
Power 380~415VAC 50~60Hz 10kW



Function introduction



By busbar conductor multifunctional processing machine, operator will input values such as length, width, piler position, quantity and etc. to initiate automatic working procedures including ends punching, piler opening, piler punching and etc..

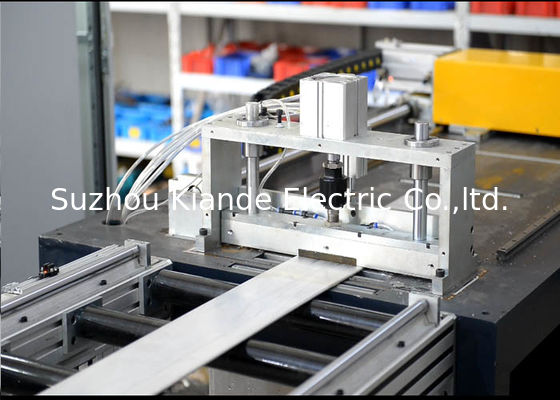

PLC control copper busbar bending punching and outlet phase stab open machine 0





Busbar Trunking System is the is a system of distributing electric power using copper or aluminium busbar with suitable enclosures and good amount of protection to prevent the cables from getting damaged due to foreign bodies.



Busbars are now becoming irreplaceable simply because of the convenience and safety factor. While using traditional cables, the cost of cabling and trunking and the time taken for installation is much higher than busbars as well.



Installing busbars over conventional cabling has a range of advantages some of which are mentioned below:



Design: Busbars have a compact design through which compressed flat conductors can pass through the enclosure. Due to the compact designs, busbars require lesser space than traditional cabling systems and this is a major advantage when thousands of amperes of electricity need to be transmitted.



Heat Absorption: Since the design is compact and has a metal casing with well-defined surface, busbars can absorb heat generated while transmissions and distribution of electricity in the walls of the enclosure. The system of cooling is much better than traditional cabling system.



Flexibility: Busbars are more flexible in nature compared to cables in the sense that it can be used in any kind of structure with any configuration. They are easily modifiable and hence the addition of an extra room or building can be easily done. Busbars can also be relocated without much of a capital expenditure.



Cost Savings: Busbars can be mounted easily than a cable and incurs a lesser cost of installation than traditional cables. They can also be mounted at a lesser time than traditional cables.



Better Resistance: Busbars have rigid design elements and hence has better resistance than cables, especially in case of short circuits. Busbars have a minimum distance between the conductors which in turn reduces the induction of resistance. Busbars also have a thin and flat tire which helps in optimal distribution of density of current and in turn reduces resistance. Due to lower levels of density, voltage loss is much lower than cables for the same length.



Reduced Loss of Energy: Busbars have lower resistance than cables. Hence the loss of energy due to transmission and distribution is lower in Busbars. Busbars also have a limited growth of reactive power to operate compared to cable systems.
