| Name: | Hydraulic Busbar Bending Machine | Feature: | Three In One |
|---|---|---|---|
| Max. Hydraulic Force: | 31.5MPa | Max. Bending Width: | 300mm |
| Positioning Accuracy: | 0.2mm | Power: | 380~415VAC 50~60Hz 10kW |
| Bend Force (KN): | 400 | Piler Head Force (KN): | 300 |
| Punch Force (KN): | 300 | ||
| High Light: | 10kW Busbar Processing Machine,1800mm Busbar Processing Machine,6000mm Busbar Processing Machine |
||

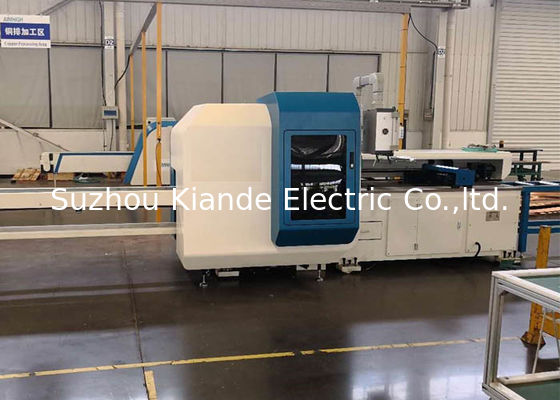

3 in 1 Hydraulic Busbar Processing Machine For Busbar Bending
The bus bar processing machine is widely used in high and low voltage switch cabinets, substations, bus ducts, bridges, electrical switches, communication equipment, household appliances, shipbuilding, office automation equipment, elevator manufacturing, chassis cabinet manufacturing and other electrical complete manufacturing industries. The bus processing machine is a supporting equipment designed to improve work efficiency and ensure the requirements of working safety by referring to foreign advanced products and combining internal reality. It is suitable for the production of large-scale electric control boxes and the construction site use of power transmission and distribution construction projects.
Function introduction
By busbar conductor multifunctional processing machine, operator will input values such as length, width, piler position, quantity and etc. to initiate automatic working procedures including ends punching, piler opening, piler punching and etc..
Equipment data on busbar conductor multifunctional processing machine
| No. | Parameters | ||
| Model | KD-DTYTJ-C/A-4.5(6) | ||
|
Force (KN) |
Bend | 400 | |
| Punch | 300 | ||
| Piler Head | 300 | ||
| Stroke of X Axis | 1800mm | ||
| Speed of X Axis | 0~150mm/s | ||
| Marking | Barcode, QR code (optional) | ||
|
Conductor Size (Aluminum, Copper) |
Length | 1200mm~6000mm | |
| Width | 140mm~300mm | ||
| Thickness | 2mm~6mm | ||
| Positioning Accuracy | 0.2mm | ||
| Repetitive Positioning Accuracy | 0.05mm | ||
| Saw Blade Power | 2kW | ||
| Saw Blade Diameter | 400mm | ||
| Max. Bending Width | 300mm | ||
| Max. Bending Height Difference | 40mm | ||
| Max. Hydraulic Force | 31.5MPa | ||
| Power | 380~415VAC 50~60Hz 10kW | ||
